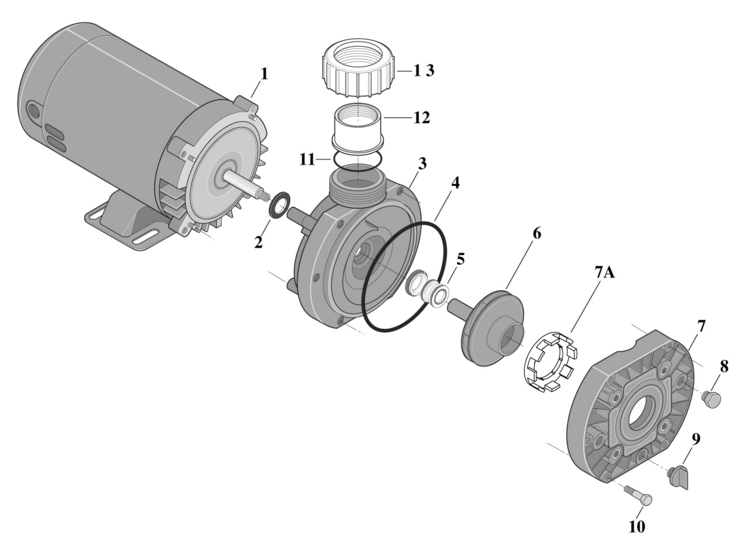

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Sta-Rite
Model Name: JW Series

Sta-Rite JW-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 Pkg 115 Trap Assembly No N/A N/A N/A

-

 319530101 Cord Assembly (-2A1 Models) Yes 1 Day(s) $28.33

-

 U1171117 Cord Assembly (-2A2 Models) Yes 1 Day(s) $22.59

1

 AS920DLL 3/4 HP Motor Yes 1 Day(s) $198.70

1

 AS92EDLL 1 HP Motor - JWAXE Models No N/A N/A N/A

1

 AS910FLL 1 1/2 HP Motor No N/A N/A N/A

1

 AS920ELL 1 HP Motor - JWAEL Models Yes 1 Day(s) $207.35

2

 C6923 Slinger Yes 1 Day(s) $1.86

3

 C1260P Seal Plate Yes 1 Day(s) $42.75

4

 355051438 O-Ring - Replaces U9-357 (effective 11/01) Yes 1 Day(s) $5.15

5

 374000027S Shaft Seal - Replaces U109-358SS (effective 1/01) Yes 1 Day(s) $18.26

6

 C105228PF Impeller - 1 HP Yes 1 Day(s) $35.16

6

 173010101 Impeller - 1 1/2 HP Yes 1 Day(s) $20.52

6

 C105228PH Impeller - 3/4 HP Yes 1 Day(s) $35.16

7

 C101272PS Front Plate Assembly - Replaces C101-272P (effective 3/03) Yes 1 Day(s) $40.95

9

 U178920P Drain Plug w/ O-Ring Yes 1 Day(s) $2.11

10

 307870005 Bolt, Hex Hd 1/4"" 20 x 1 3/4 Yes 1 Day(s) $3.02

12

 U11182PM Collar, Union (a) Yes 1 Day(s) $9.36

13

 U11183PM Adapter, Union (a) Yes 1 Day(s) $7.58
