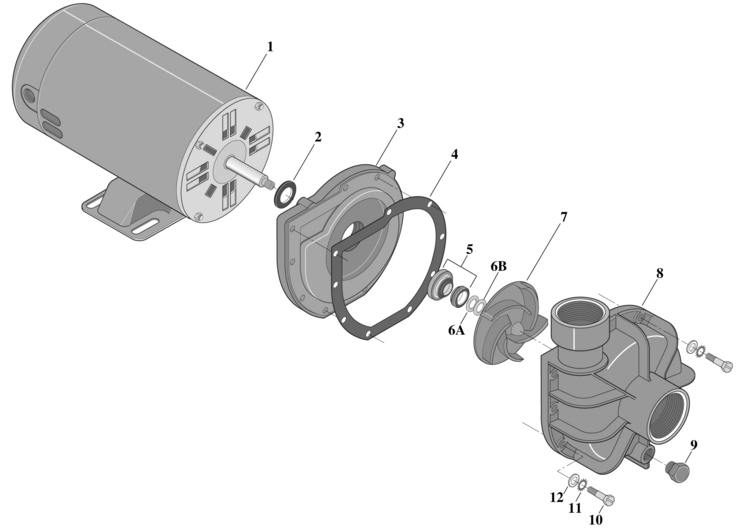

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: LT Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	PP1075	Seal and Gasket Kit	Yes	1 Day(s)	$42.82
-	PP1082	Overhaul Kit - 3/4 HP	Yes	1 Day(s)	$60.57
-	PP1080	Overhaul Kit - 1/6 HP	Yes	1 Day(s)	$60.57
-	PP1081	Overhaul Kit - 1/2 HP	Yes	1 Day(s)	$54.63
-	PP1082	Overhaul Kit - 3/4 HP	Yes	1 Day(s)	$60.57
-	U11183P	Adapter, Union - 1 1/2"" Slip	No	N/A	N/A	N/A
-	U11182P	Collar, Union	No	N/A	N/A	N/A
-	U11186P	Adapter, Union - 1 1/4"" MPT	No	N/A	N/A	N/A
1	A800DLLY	3/4-1/8 HP 115V/60H/1 Ph. Motor (a)	Yes	1 Day(s)	$264.73
1	A800DL	3/4 HP 115V/60H/1 Ph. Motor (a)	Yes	1 Day(s)	$229.79
1	A800CL	1/2 HP 115V/60H/1 Ph. Motor (a)	Yes	1 Day(s)	N/A	N/A
1	A800A16L	1/6 HP 115V/60H/1 Ph. Motor (a)	Yes	1 Day(s)	$177.42
2	C697	Slinger	Yes	1 Day(s)	$1.65
3	C184P2	Seal Plate	Yes	1 Day(s)	$95.78
4	C2031B	Gasket	Yes	1 Day(s)	$8.71
5	U10968SS	Shaft Seal	Yes	1 Day(s)	$32.18
6A	C4321D	Shim (.010 Thick) As Required	Yes	1 Day(s)	$1.61
6B	C4322D	Shim (.029 Thick) As Required	Yes	1 Day(s)	$1.86
7	C5175P	3/4 HP Impeller	Yes	1 Day(s)	$33.17
7	C5151P	1/2 HP Impeller	No	N/A	N/A	N/A
7	C5151P2	1/6 HP Impeller	Yes	1 Day(s)	$40.47
7	C5175P	3/4 HP Impeller	Yes	1 Day(s)	$33.17
8	C101247P	Volute	Yes	1 Day(s)	$48.25
10	U30871SS	Capscrew, 10x5/8""	Yes	1 Day(s)	$1.17
11	U4322SS	Lockwasher	Yes	1 Day(s)	$1.20
12	U43113SS	Washer, Flat	Yes	1 Day(s)	$1.17
