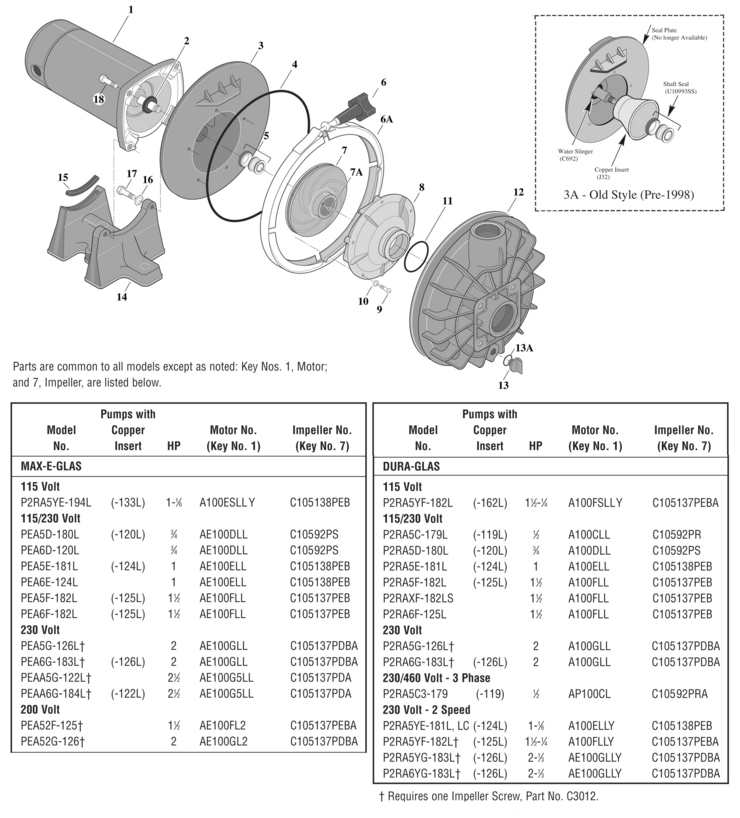

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: Max-E-Glas / Dura-Glas Series - Up Rate Models



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	C787P	Reducer 2x1 1/2""	Yes	1 Day(s)	$12.29
2	173510009	Water Slinger Replaces C69-2 (effective 9/00). P2RA5YE and P2RA5YF use C69-2	Yes	1 Day(s)	$1.08
3	C203193P	Seal Plate Kit Includes Seal Plate, Shaft Seal and Seal Plate O-Ring. New Seal Plate design. See insert drawing for models with	Yes	1 Day(s)	$105.53
4	U9228A	O-Ring	Yes	1 Day(s)	$6.14
5	173040100S	Shaft Seal	Yes	1 Day(s)	$8.21
6A	C1937A	Clamp	Yes	1 Day(s)	$65.75
7A	C3012	Impeller Screw - 1 1/2 thru 2 1/2 HP	Yes	1 Day(s)	$4.87
8	C1200PA	Diffuser-1 thru 2 1/2 HP (Up-Rate)	Yes	1 Day(s)	$19.68
8	C1217P	Diffuser-1/2HP (Up-Rate)	Yes	1 Day(s)	$18.32
8	C1216P	Diffuser-3/4HP* (Up-Rate)	Yes	1 Day(s)	$18.55
9	U30542SS	Capscrew, 8-32x 7/8""	Yes	1 Day(s)	$1.43
10	U4321SS	Washer, #8 Lock	Yes	1 Day(s)	$1.17
12	C17647P1	Tank Body	Yes	1 Day(s)	$84.04
13	U178920P	Drain Plug 1/4"" NPT with O-Ring	Yes	1 Day(s)	$2.11
14	J1049C	Base, Metal (Model P2RAXF-182LS Only)	Yes	1 Day(s)	$27.52
14	C10442P	Base with Motor Pad	Yes	1 Day(s)	$27.90
15	C3511	Motor Pad	Yes	1 Day(s)	$2.05
16	U4342SS	Washer, Flat	Yes	1 Day(s)	$1.39
17	U3074SS	Capscrew, 3/8-16x1""	Yes	1 Day(s)	$2.77
18	U3077SS	Capscrew, 3/8-16x1 3/4""	Yes	1 Day(s)	$3.72
