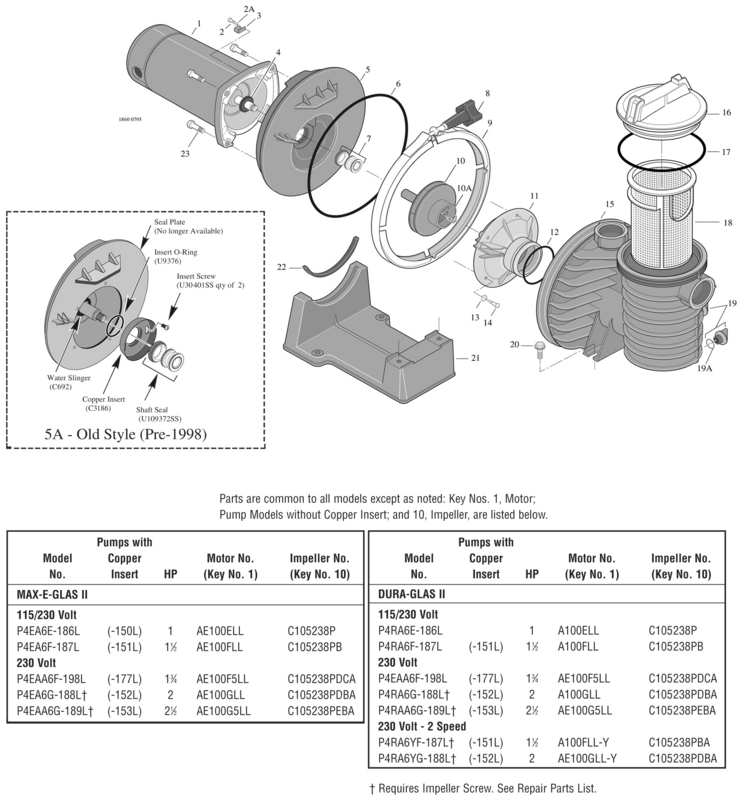

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: Max-E-Glas II / Dura-Glas II Series - Up Rate Models



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	355051426	Impeller O-Ring	Yes	1 Day(s)	$0.63
2	U30692SS	Screw, 10-32x1/2""	Yes	1 Day(s)	$1.39
2A	U4322SS	Lockwasher	Yes	1 Day(s)	$1.20
3	U17568	Bonding Lug	Yes	1 Day(s)	$6.86
4	173510009	Water Slinger - Replaces C69-2 (effective 9/00).	Yes	1 Day(s)	$1.08
5	C203194P	Seal Plate Kit Includes Seal Plate, Shaft Seal and Seal Plate O-Ring (New Seal Plate design). for models with Copper Insert, see	Yes	1 Day(s)	$105.53
6	U9228A	O-Ring	Yes	1 Day(s)	$6.14
7	374000028S	Shaft Seal, Viton	Yes	1 Day(s)	$24.46
7	374000027S	Shaft Seal, Buna Replaces U109-358SS (effective 6/00)	Yes	1 Day(s)	$18.26
9	C1937A	Clamp	Yes	1 Day(s)	$65.75
10A	373376080	Impeller Screw	Yes	1 Day(s)	$10.99
10A	373376081	Impeller Screw (for Impeller No. C105-238PBA only)	Yes	1 Day(s)	$12.84
11	C1271P1	Diffuser-1 HP&1 1/2HP	Yes	1 Day(s)	$20.13
11	C1271P	Diffuser- 1 3/4 thru 2 1/2 HP	Yes	1 Day(s)	$19.46
12	U9374	Diffuser O-Ring	Yes	1 Day(s)	$3.67
13	U4321SS	Lockwasher, #8	Yes	1 Day(s)	$1.17
14	U30922SS	Diffuser Screw, 1 1/2, thru 3 HP	Yes	1 Day(s)	$0.69
14	U30542SS	Diffuser Screw, 3/4 HP & 1 HP	Yes	1 Day(s)	$1.43
15	C17659P	Tank Body Assembly (includes Trap Cover, O-Ring, Basket)	Yes	1 Day(s)	$177.63
16	C3185P3	Trap Cover - (Biguanide Resistant)	Yes	1 Day(s)	$51.56
16	C3185P	Trap Cover	Yes	1 Day(s)	$38.79
17	U9375	Trap Cover O-Ring	Yes	1 Day(s)	$10.52
18	C858P	Basket	Yes	1 Day(s)	$8.69
19	U178920P	Drain Plug 1/4"" NPT with O-Ring	Yes	1 Day(s)	$2.11
20	U30918SS	Screw, Base	Yes	1 Day(s)	$3.19
21	C10479P	Base with Motor Pad (3 HP only)	Yes	1 Day(s)	$29.26
21	C478P	Base without Motor Pad	Yes	1 Day(s)	$28.60
21	C10478P	Base with Motor Pad	No	N/A	N/A	N/A
22	C3543	Motor Pad	Yes	1 Day(s)	$3.42
23	U3099SS	Capscrew, Socket Head, 3/8-16x1"" (3 HP only)	Yes	1 Day(s)	$5.41
23	U3074SS	Capscrew, 3/8-16x1""	Yes	1 Day(s)	$2.77
