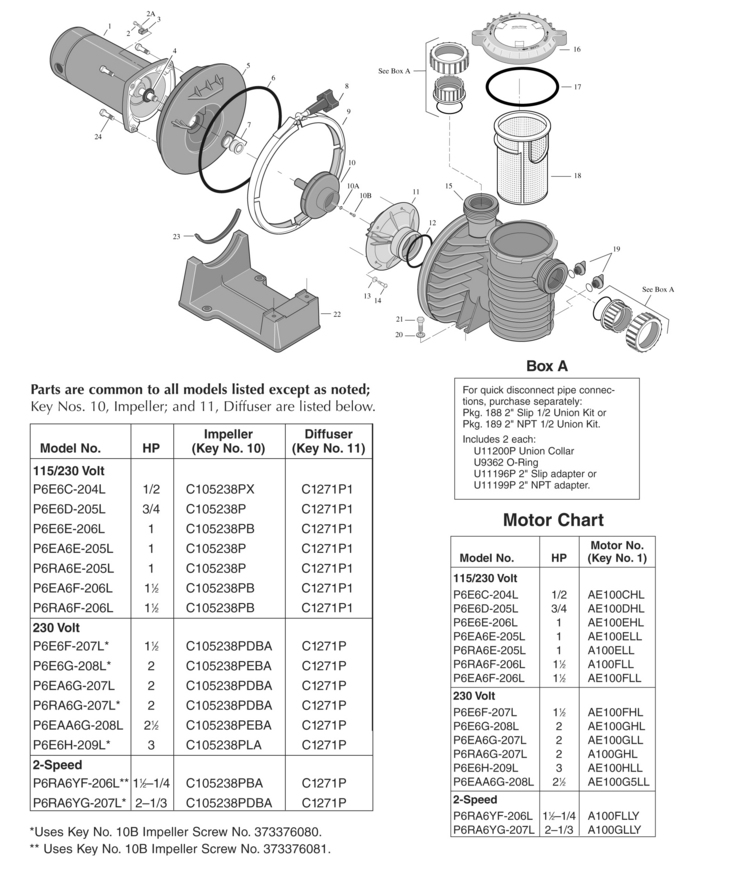

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: Max-E-Pro Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
2	U30692SS	#10-32x1/2"" Screw	Yes	1 Day(s)	$1.39
2A	U4322SS	Lock Washer	Yes	1 Day(s)	$1.20
3	U17568	Bonding Lug	Yes	1 Day(s)	$6.86
4	173510009	Water Slinger	Yes	1 Day(s)	$1.08
5	C203194P	Seal Plate Kit (Incl. Key Nos. 6, 7)	Yes	1 Day(s)	$105.53
6	U9228A	O-Ring	Yes	1 Day(s)	$6.14
7	374000028S	Shaft Seal, Viton	Yes	1 Day(s)	$24.46
8	C1937A	Clamp Knob	Yes	1 Day(s)	$65.75
10A	355051426	Impeller Screw O-Ring	Yes	1 Day(s)	$0.63
12	U9374	Diffuser O-Ring	Yes	1 Day(s)	$3.67
13	U4321SS	#8 Lock Washer	Yes	1 Day(s)	$1.17
14	U30922SS	Screw (w/C1-271P Diffuser)	Yes	1 Day(s)	$0.69
14	U30542SS	Screw (w/C1-271P1 Diffuser)	Yes	1 Day(s)	$1.43
15	173070110S	Tank Body Assembly - Includes Trap Body, Basket, Drain Plugs, and Trap Cover Assembly.	Yes	1 Day(s)	$195.84
16	173070111S	Trap Cover Assembly - Includes Trap Cover, Trap Ring and Trap Cover O-Ring.	Yes	1 Day(s)	$44.27
17	355051440	Trap O-Ring	Yes	1 Day(s)	$10.61
18	C858P	Basket	Yes	1 Day(s)	$8.69
19	U178920P	1/4"" NPT Drain Plug	Yes	1 Day(s)	$2.11
19	U9357	Drain Plug O-Ring	No	N/A	N/A	N/A
20	U4341SS	Base Washer	Yes	1 Day(s)	$1.39
21	U30918SS	Base Screw	Yes	1 Day(s)	$3.19
22	C10478P	Base w/Motor Pad	No	N/A	N/A	N/A
22	C10479P	Base w/Motor Pad (3 HP only)	Yes	1 Day(s)	$29.26
23	C3544	Motor Pad (3 HP only)	Yes	1 Day(s)	$5.06
23	C3543	Motor Pad	Yes	1 Day(s)	$3.42
24	U3074SS	3/8-16x1"" Hex Hd. Screw	Yes	1 Day(s)	$2.77
24	U3099SS	3/8-16x1"" Soc. Hd. Screw (3 HP only)	Yes	1 Day(s)	$5.41
