SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

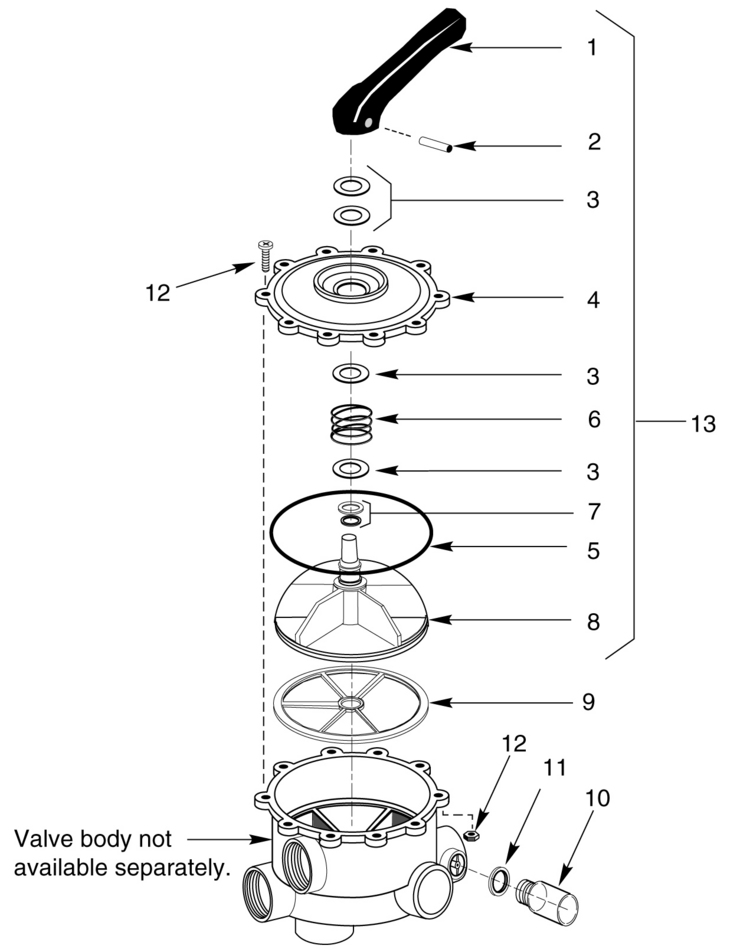

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Multi-Port Side Mount Valve Assembly - 2

Sta-Rite MultiPort-Side-Mount-Valve-Assembly-2 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 247500624 1 1/2 x 2"" Hose Connector Kit (a) Yes 1 Day(s) $32.41

-

 247500341 2x2"" Hose Connector Kit (a) Yes 1 Day(s) $28.73

1

 WC5415 Handle No N/A N/A N/A

2

 WC3058 Pin Yes 1 Day(s) $9.16

3

 WC2310 Bearings & Washer No N/A N/A N/A

4

 WC340S Valve Cover No N/A N/A N/A

5

 U9243 Cover O-Ring No N/A N/A N/A

6

 WC244 Spring No N/A N/A N/A

7

 U9244 O-Ring and Teflon Seal No N/A N/A N/A

8

 WC622 Key and Stem Assembly No N/A N/A N/A

9

 WC2022 Gasket No N/A N/A N/A

10

 WC1704 Sight Glass with O-Ring No N/A N/A N/A

11

 WC92 O-Ring Yes 1 Day(s) $1.90

12

 WC3055 Screw and Nut No N/A N/A N/A

13

 WC15415 Cover and Handle Assembly No N/A N/A N/A
