SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

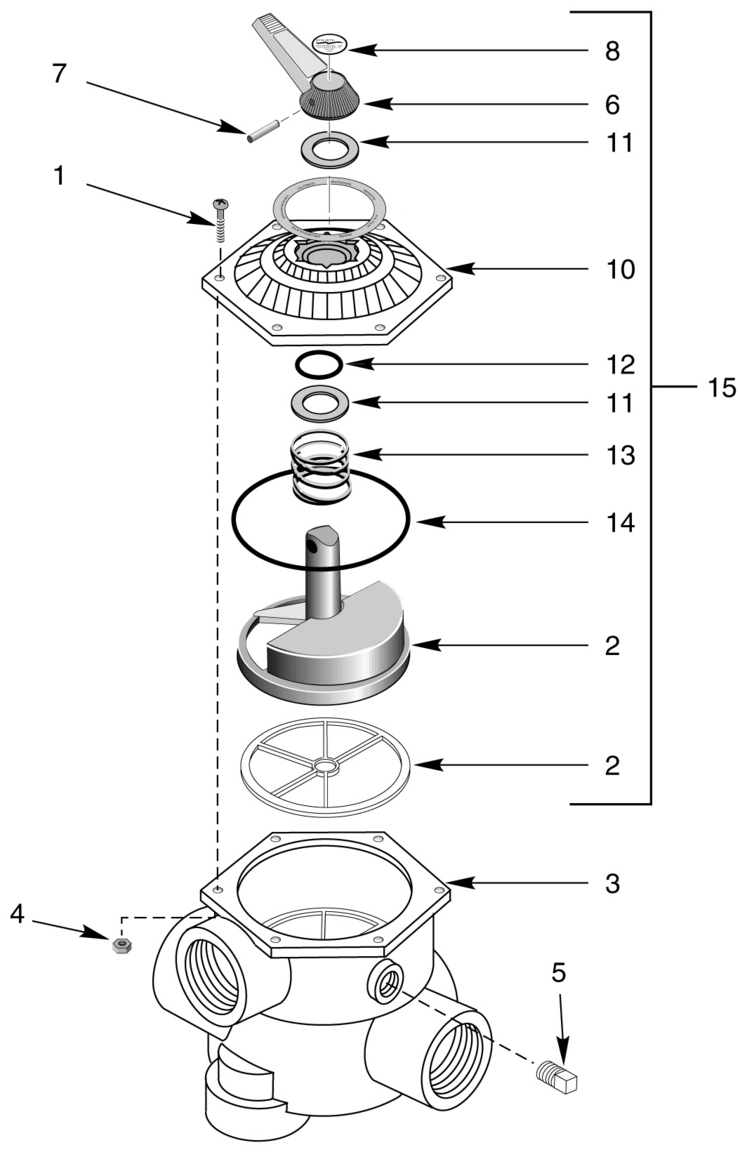

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Multi-Port Side Mount Valve Assembly - 1 1/2

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 149620029 Handle Kit (incl. key nos. 6, 7, 8) Yes 1 Day(s) $19.12

-

 149620041 Lid Kit (incl. key nos. 9, 10) Yes 1 Day(s) $36.86

-

 149620035 O-Ring Kit (incl. key nos. 11, 12, 13, 14) Yes 1 Day(s) $23.84

-

 14971SM10E50 Key Assembly (Includes 1-9,13,14) No N/A N/A N/A

1

 14971SM10E1 Handle Yes 1 Day(s) $24.92

1

 373373056 Screw, 1/4-20 x 1 1/4"" S.S. Yes 1 Day(s) $1.24

2

 149620017 Plug and Gasket Yes 1 Day(s) $57.78

3

 14971SM10E3 Washer Yes 1 Day(s) $7.11

3

 149630007 Body Assembly Yes 1 Day(s) $80.15

4

 14971SM20E6 Valve Cover - 2"" Yes 1 Day(s) $37.34

4

 14971SM10E6 Valve Cover - 1 1/2"" Yes 1 Day(s) $45.50

4

 354074297 Hex Nut, 1/4-20 S.S. Yes 1 Day(s) $1.90

5

 14971SM10E7 Cover O-Ring - 1 1/2"" Yes 1 Day(s) $11.91

5

 14971SM20E7 Cover O-Ring - 2"" Yes 1 Day(s) $10.59

6

 14971SM10E8 Washer Yes 1 Day(s) $7.11

6

 149620123 Handle No N/A N/A N/A

7

 14971SM10E9 Spring Yes 1 Day(s) $31.10

7

 358570021 Dowel Pin, 5/16 x 2 1/2"" S.S. Yes 1 Day(s) $3.95

8

 14971SM10E10 O-Ring Yes 1 Day(s) $6.22

9

 14971SM10E11 Plug - 1 1/2"" Yes 1 Day(s) $40.74

9

 14971SM20E11 Plug - 2"" Yes 1 Day(s) $38.79

10

 149620018 Lid No N/A N/A N/A

10

 14971SM20E12 Spider Gasket - 2"" Yes 1 Day(s) $28.00

10

 14971SM10E12 Spider Gasket - 1 1/2"" Yes 1 Day(s) $14.10

11

 149620005 Washer Yes 1 Day(s) $2.30

11

 U178920P 1/4"" NPT Plug w/ O-Ring Yes 1 Day(s) $2.11

12

 14971SM10E17 Sight Glass Yes 1 Day(s) $10.80

12A

 14971SM10E16 Sight Glass Gasket Yes 1 Day(s) $3.97

12

 355051228 O-Ring Yes 1 Day(s) $2.30

13

 149620011 Spring Yes 1 Day(s) $11.40

13

 14971SM10E14 Nut Yes 1 Day(s) $1.68

14

 14971SM10E4 Bolt Yes 1 Day(s) $2.52

14

 355051272 O-Ring Yes 1 Day(s) $6.03

15

 14971SM10E2 Handle Pin Yes 1 Day(s) $10.07

15

 777040103 Plug and Cover Assembly Yes 1 Day(s) $116.09
