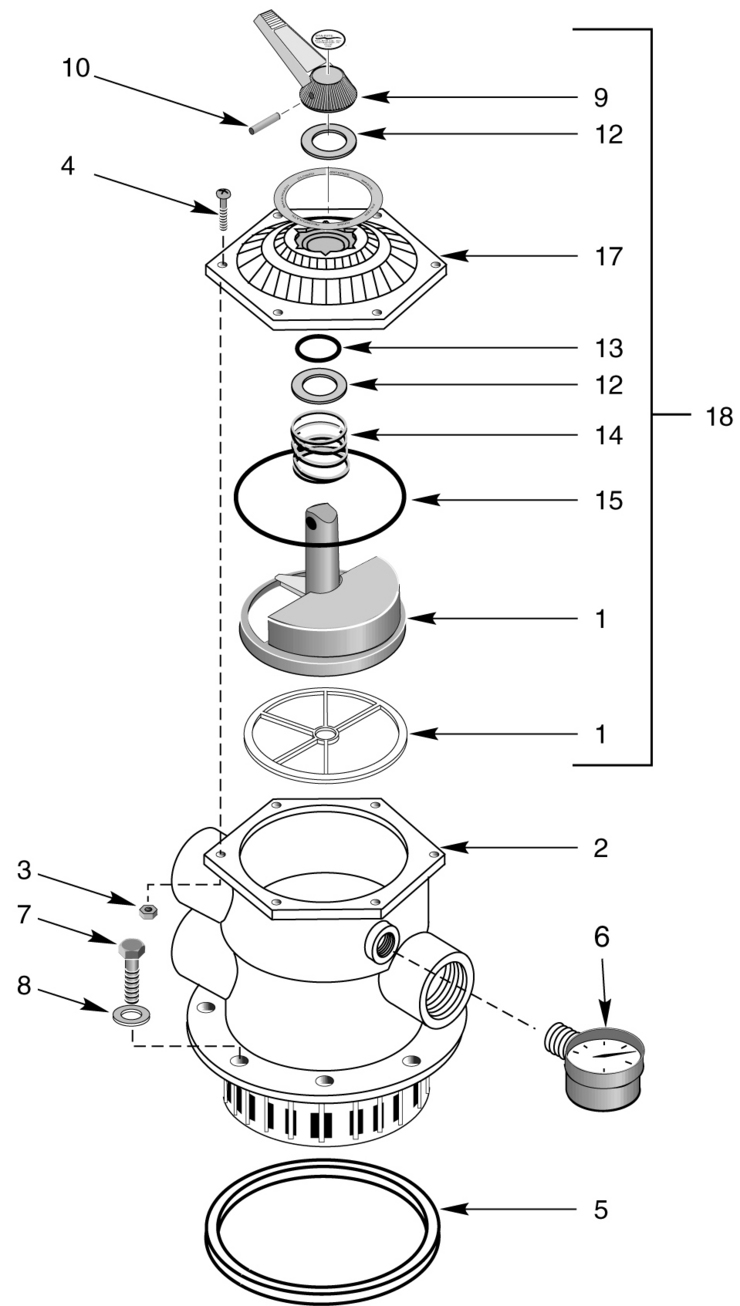

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Multi-Port Top Mount Valve Assembly - 1 1/2

Sta-Rite MultiPort-Top-Mount-Valve-Assembly-1-12 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 149620041 Lid Kit (incl. key nos. 16 & 17) Yes 1 Day(s) $36.86

-

 149620035 O-Ring Kit (incl. key nos. 12, 13, 14, 15) Yes 1 Day(s) $23.84

-

 149620029 Handle Kit (incl. key nos. 9, 10 ,11) Yes 1 Day(s) $19.12

1

 149620017 Plug with Gasket Yes 1 Day(s) $57.78

2

 149620037S Body Assembly Yes 1 Day(s) $128.75

3

 354074297 Hex Nut, 1/4-20 S.S. Yes 1 Day(s) $1.90

4

 373373056 Screw, 1/4-20x1 1/4"" S.S. Yes 1 Day(s) $1.24

5

 149620021 Square Ring, BUNA-N Yes 1 Day(s) $11.62

7

 U3074SS Bolt, 3/8-16x1 ""S.S. Yes 1 Day(s) $2.77

8

 389073192 Washer, Flat 3/8"" Plain S.S. Yes 1 Day(s) $0.79

9

 149620123 Handle No N/A N/A N/A

10

 358570021 Dowel Pin, 5/16 X 2 1/2"" S.S. Yes 1 Day(s) $3.95

12

 149620005 Washer, Celcon Yes 1 Day(s) $2.30

13

 355051228 O-Ring, Parker #2-216, BUNA-N Yes 1 Day(s) $2.30

14

 149620011 Spring, Compression Yes 1 Day(s) $11.40

15

 355051272 O-Ring, Parker #2-255 Yes 1 Day(s) $6.03

17

 149640029 Lid No N/A N/A N/A

18

 777040102 Plug and Cover Assembly Yes 1 Day(s) $132.54
