SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

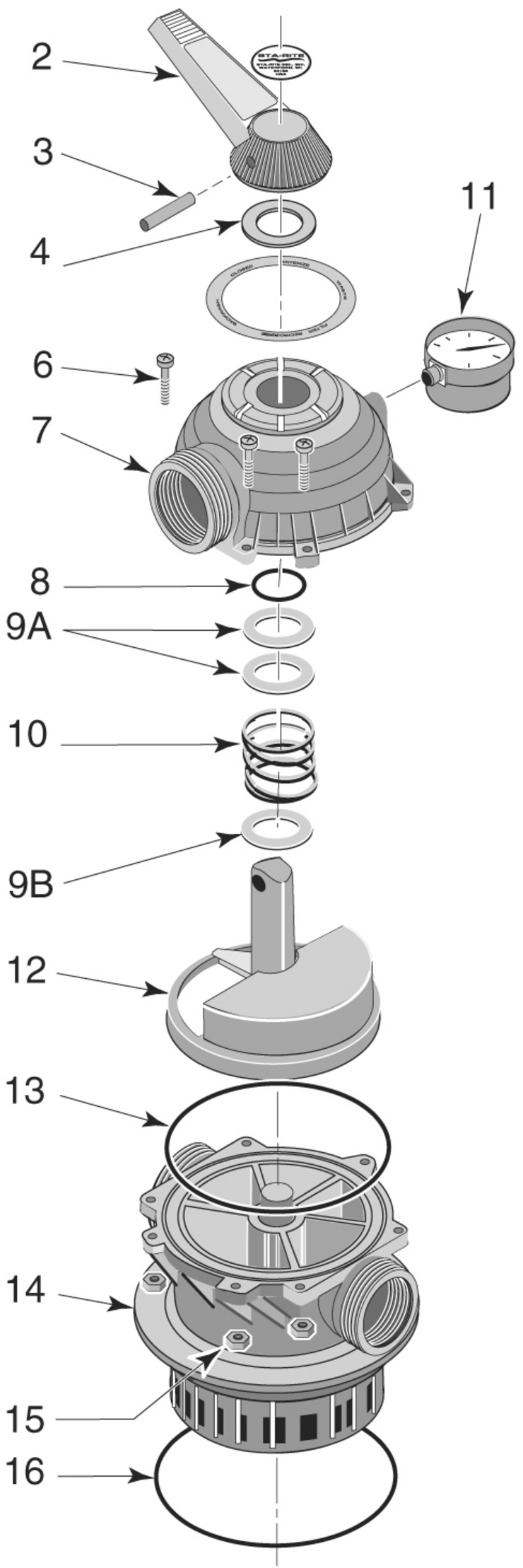

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Multi-Port Valve - 1 1/2

Sta-Rite MultiPort-Valve-1-12 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 777040104 Plug and Cover Assembly Yes 1 Day(s) N/A N/A

-

 WC11987 Clamp Assembly(a) Yes 1 Day(s) $115.83

2

 149620032 Handle Yes 1 Day(s) $8.71

3

 358570021 Dowel Pin Yes 1 Day(s) $3.95

4

 149650007 Washer Yes 1 Day(s) $2.21

6

 373373056 Screw Yes 1 Day(s) $1.24

7

 149650011S Valve Cover Yes 1 Day(s) N/A N/A

8

 355051228 O-Ring Yes 1 Day(s) $2.30

9A

 149650007 Washer Yes 1 Day(s) $2.21

9B

 149650007 Washer Yes 1 Day(s) $2.21

10

 149650006 Spring Yes 1 Day(s) $9.53

12

 149650028 Plug and Gasket Assembly Yes 1 Day(s) $29.86

13

 355051275 O-Ring, Cover Yes 1 Day(s) $3.95

14

 149650013 Valve Body Assembly Yes 1 Day(s) N/A N/A

15

 354070071 Nut Yes 1 Day(s) $2.91

16

 U9369 O-Ring, Tank Flange Yes 1 Day(s) $10.74
