SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

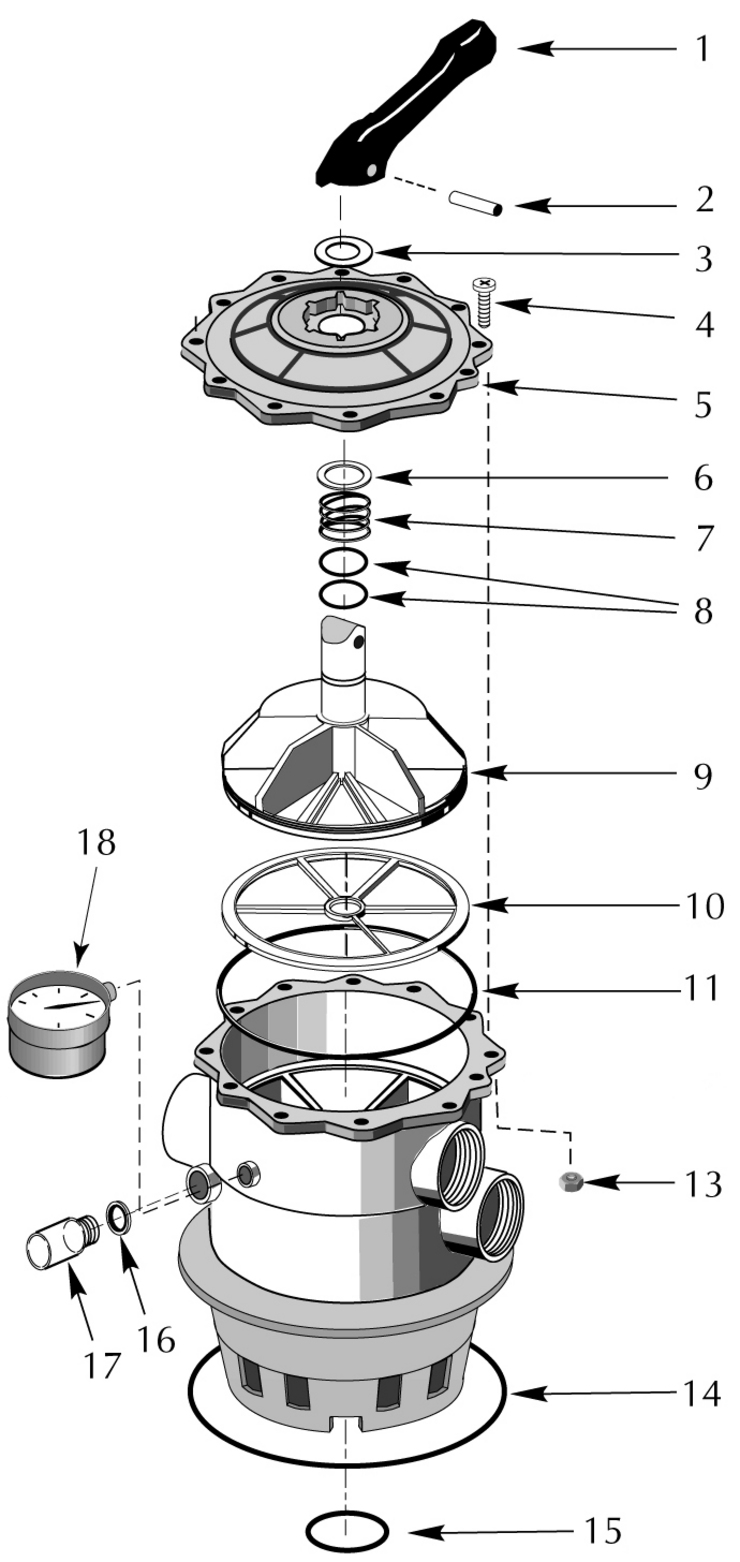

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Multi-Port Valve - 2 - Model 14971-TM-22-L

Sta-Rite MultiPort-Valve-2-Model-14971TM22L replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 14971SM20E50 Key Assembly Items 1-10 Yes 1 Day(s) $243.61

1

 14971SM10E1 Handle (ABS) Yes 1 Day(s) $24.92

2

 14971SM10E2 Pin (S.S. 304) Yes 1 Day(s) $10.07

3

 14971SM10E3 Washer Yes 1 Day(s) $7.11

4

 14971SM10E4 Screw (S.S. 304) Yes 1 Day(s) $2.52

5

 14971SM20E6 Valve Cover (ABS) Yes 1 Day(s) $37.34

6

 14971SM10E8 Washer Yes 1 Day(s) $7.11

7

 14971SM10E9 Spring (S.S. 304) Yes 1 Day(s) $31.10

8

 14971SM10E10 O-Ring (Mitrile) Yes 1 Day(s) $6.22

9

 14971SM20E11 Plug & Gasket Assembly Yes 1 Day(s) $38.79

10

 14971SM20E12 Gasket (Kratom) Yes 1 Day(s) $28.00

11

 14971SM20E7 O-Ring, Cover Yes 1 Day(s) $10.59

13

 14971SM10E14 Nut, Hex (S.S. 304) Yes 1 Day(s) $1.68

14

 U9369 O-Ring, Tank Flange Yes 1 Day(s) $10.74

15

 355051243 O-Ring, Stand Pipe Yes 1 Day(s) $2.01

16

 14971SM10E17 Gasket, Sight Glass Yes 1 Day(s) $10.80

17

 14971SM10E16 Sight Glass Yes 1 Day(s) $3.97
