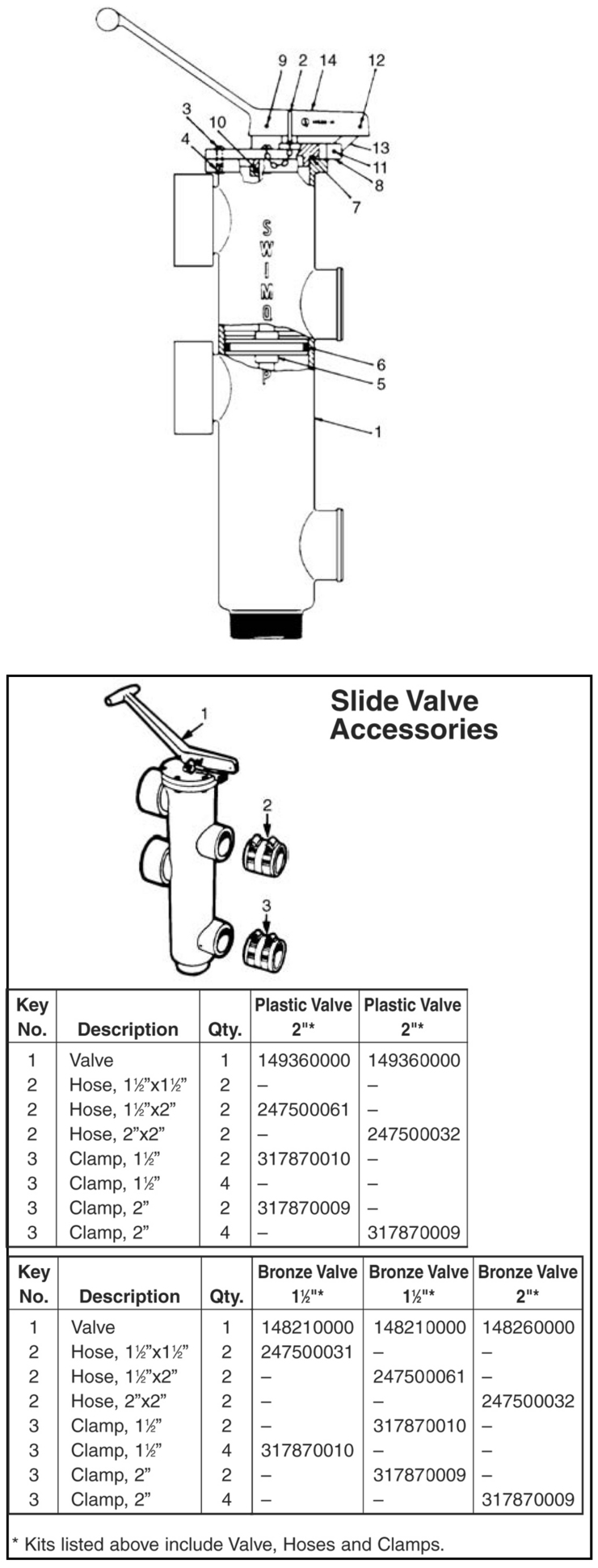

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Sta-Rite

Model Name: Plastic Slide Valve



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	149300031	Handle Kit (incls. Nos. 11, 12, 13, 14)	Yes	1 Day(s)	$53.45
-	149300032	Index Plate Kit ( incls. Nos. 7, 8, 9, 10)	Yes	1 Day(s)	$23.02
-	149300033	O-Ring / Molded Piston Kit ( incls. Nos. 5 & 6)	Yes	1 Day(s)	$88.75
1	149300003	Body Assembly	Yes	1 Day(s)	$63.95
2	WC3084	Lock Pin Assembly	Yes	1 Day(s)	$10.07
3	371070085	Screw	Yes	1 Day(s)	$2.51
4	343020518	Brass Insert	Yes	1 Day(s)	$1.44
5	149300005	Molded Piston Assembly	No	N/A	N/A	N/A
6	355051318	O-Ring	Yes	1 Day(s)	$2.91
7	355051246	O-Ring	Yes	1 Day(s)	$2.51
8	149300012	Index Plate	Yes	1 Day(s)	$18.01
9	358170061	Spring Pin	No	N/A	N/A	N/A
10	355051116	O-Ring	Yes	1 Day(s)	$2.30
11	358170061	Spring Pin	No	N/A	N/A	N/A
12	358170056	Spring Pin	Yes	1 Day(s)	$2.51
13	149300016	Lever Linkage	Yes	1 Day(s)	$2.30
14	149300014	Handle	Yes	1 Day(s)	$55.50
