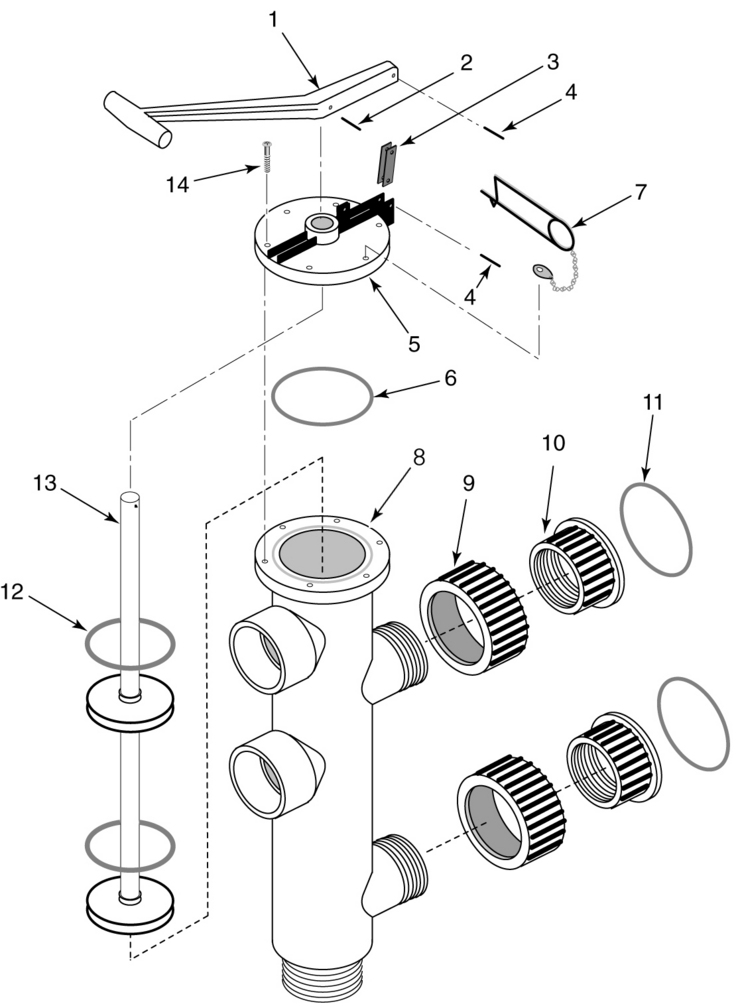

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Sta-Rite

Model Name: Plastic Valve



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	149300031	Handle Kit, includes: Key Nos. 1. Handle, 2. Spring Pin, 3. Lever Linkage, 4. Spring Pin	Yes	1 Day(s)	$53.45
-	149300032	Index Plate Kit, includes: Key Nos. 4. Spring Pin, 5. Index Plate, 6.Index Plate O-Ring	Yes	1 Day(s)	$23.02
-	149300033	O-Ring / Molded Piston Kit, includes: Key Nos. 12 & 13	Yes	1 Day(s)	$88.75
-	355051116	Shaft O-Ring	Yes	1 Day(s)	$2.30
7	WC3084	Lock Pin Assembly	Yes	1 Day(s)	$10.07
10	U11199P	Union Adapter Assembly	Yes	1 Day(s)	$6.22
14	371070085	Screw	Yes	1 Day(s)	$2.51
