SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

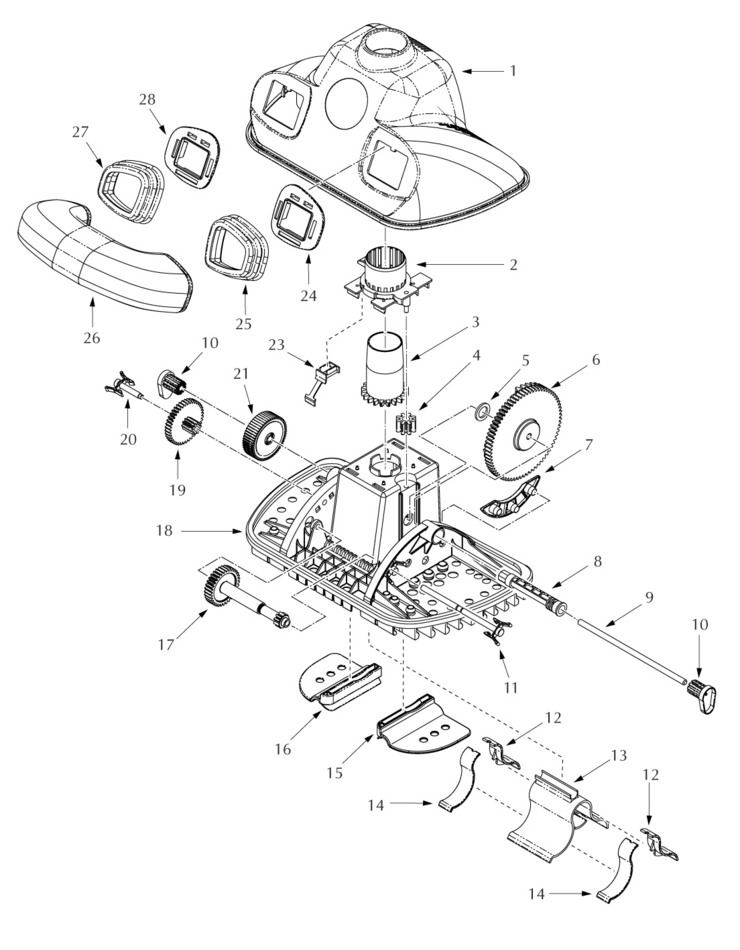

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Sta-Rite
Model Name: Poolshark In-Ground Pool Cleaner

Sta-Rite Poolshark-InGround-Pool-Cleaner replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 412010252 Suction Hose, 1 Meter Segments No N/A N/A N/A

-

 GW9540 Short Extension Hose Yes 1 Day(s) $18.07

-

 777050400 Model GW7505 Accessory Kit Includes: Regulator Valve #1, Regulator Valve #2, Regulator Valve Cover, Hose Connector Male/Male, Ho No N/A $95.30

-

 GW7511 Model GW7700 Bumper Kit (Incl. Key Nos. 24,25, 26,27,28) Right Bumper Boot Clip, Right Bumper Boot, Bumper, Left Bumper Boot, Le Yes 1 Day(s) $25.73

-

 GW7501 Model GW7505 Bumper Kit (Incl. Key Nos. 24,25, 26,27,28) Right Bumper Boot Clip, Right Bumper Boot, Bumper, Left Bumper Boot, Le Yes 1 Day(s) $28.34

-

 GW7506 Model GW7505 Seal Flap Kit (Incl. Key Nos. 15,16) Right seal Flap, Left Seal Flap No N/A N/A N/A

-

 GW7502 Model GW7505 Oscillator Kit (Incl. Key Nos. 12, 13,14) Small Sliding Seal (2), Oscillator, Large Sliding Seal (2) No N/A N/A N/A

-

 GW7504 Model GW7505 Gear Kit (Incl. Key Nos. 6 ,10,11,17,19,20) Large Steering Drive Assembly, Shaft Plug (2), Long Sprocket Clip, Driv No N/A N/A N/A

-

 GW7503 Clutch Kit (Incl. Key Nos. 5,8,21,23) Oscillator Sleeve Bushing, Oscillator Sleeve, Clutch Assembly, Clutch Clip Yes 1 Day(s) $25.34

-

 GW7515 Model GW7700 Steering Kit (Incl. Key Nos. 2,3,4) Swivel Housing, Swivel, Swivel Sprocket Yes 1 Day(s) $30.49

-

 GW7505 Model GW7505 Steering Kit (Incl. Key Nos. 2,3,4) Swivel Housing, Swivel, Swivel Sprocket No N/A N/A N/A

18

 412010242 Model GW7505 Chassis with Pad No N/A $93.56
