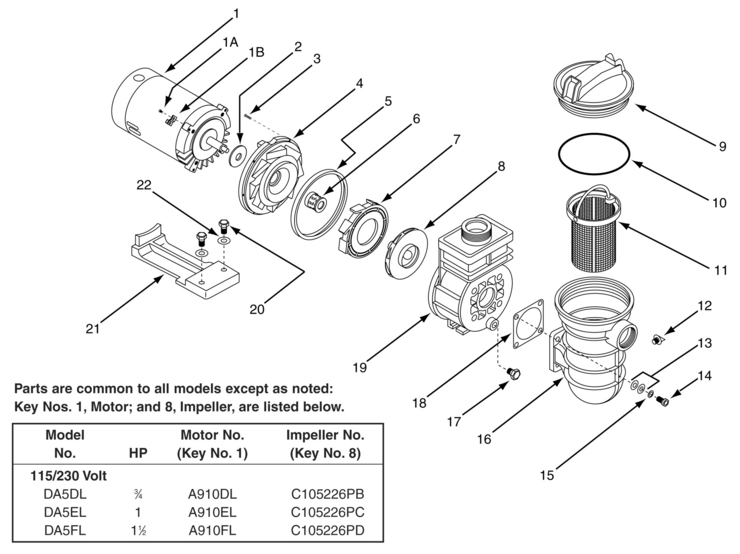

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Sta-Rite
Model Name: Self Priming Pump - Delta Series

Sta-Rite Self-Priming-Pump-Delta-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 171400015 Water Slinger No N/A N/A N/A

3

 U30152SS Capscrew, 10-24x5/8"" Yes 1 Day(s) $1.39

4

 C103179P Seal Plate No N/A N/A N/A

5

 171400026 O-Ring Yes 1 Day(s) $5.80

6

 374070019 Shaft Seal No N/A N/A N/A

7

 171400007 Diffuser Yes 1 Day(s) $9.73

9

 C3139P1 Trap Cover Yes 1 Day(s) $36.41

10

 U9229 Trap Cover O-Ring Yes 1 Day(s) $8.50

11

 C10833P Trap Basket Yes 1 Day(s) $8.05

12

 U178920P Drain Plug, 1/4"" NPT w/ O-Ring Yes 1 Day(s) $2.11

13

 U4341SS Flat Washer, 5/16"" Yes 1 Day(s) $1.39

14

 U3064SS Capscrew, 5/16-18x1 1/4"" Yes 1 Day(s) $2.53

15

 U4311SS Lock Washer, 5/16"" Yes 1 Day(s) $1.43

16

 C15353P1 Trap Body Yes 1 Day(s) $70.14

18

 C20103 Gasket No N/A N/A N/A

19

 C27657P Tank Body Yes 1 Day(s) $169.80

20

 U3072SS Bolt, 3/8-16x3/4"" Yes 1 Day(s) $2.77

21

 169200015 Base Yes 1 Day(s) $31.28

22

 U4342SS Flat Washer, 3/8"" Yes 1 Day(s) $1.39
