SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Skimmers
Manufacturer name: Sta-Rite
Model Name: U-3 Vinyl Liner Skimmer

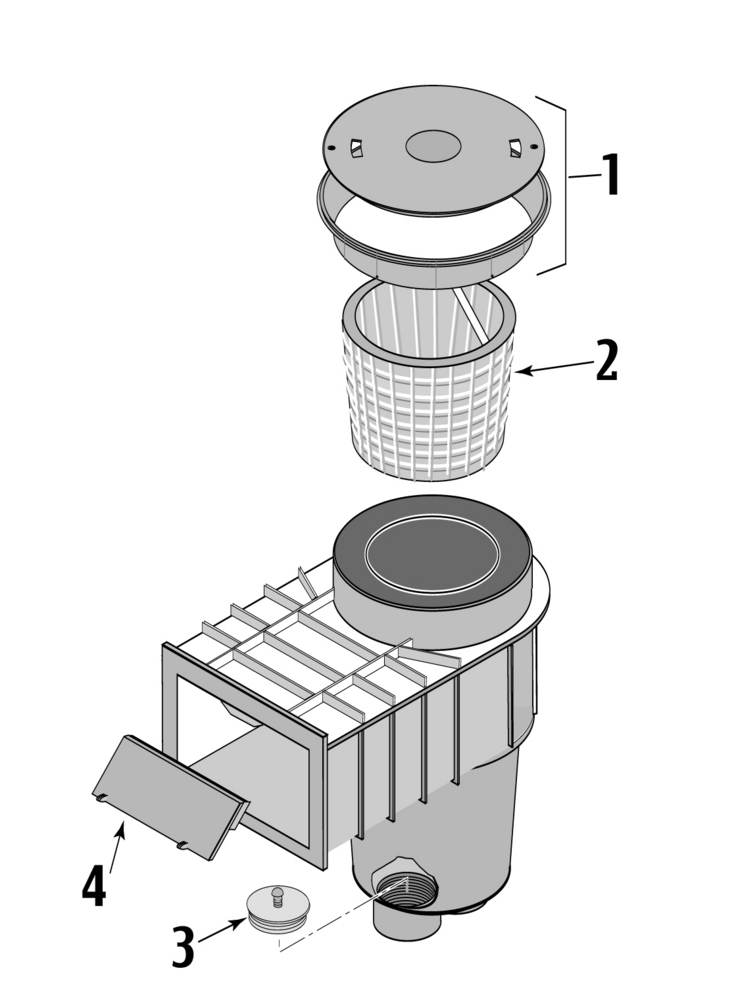

Sta-Rite U3-Vinyl-Liner-Skimmer replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 374160005 Screw, #12-14x1 1/2"" Flat Head No N/A N/A N/A

-

 WC28P Face Plate Yes 1 Day(s) $18.32

-

 U36105SS Nut, Hex #10-24 No N/A N/A N/A

-

 4327 Screw, #10-24NCx1 1/4"" Phillips Pan Head No N/A N/A N/A

-

 086500042 Vacuum Plate (a) No N/A N/A N/A

-

 374160004 Screw, #12-14x1"" Flat Head Yes 1 Day(s) $0.56

-

 U9366 Gasket Yes 1 Day(s) $4.61

-

 U78858P Reducer, 2x1 1/2"" Slip - Models 09655-1404 & 09655-2404 No N/A N/A N/A

-

 086500018 Bumper No N/A N/A N/A

-

 372070825 Screw, #8x3/8"" Pan Head Yes 1 Day(s) $2.30

-

 086500067 Basket Handle No N/A N/A N/A

-

 WC37503P Skimmer Extension Collar Yes 1 Day(s) $20.42

-

 086600019 Pressure Test Kit No N/A N/A N/A

-

 096550010 Skimmer Spacer Block No N/A N/A N/A

1

 086500169 Grate/Frame (White) - Models 09655-1403 & 09655-1404 No N/A N/A N/A

1

 086500159 Grate/Frame (Tan) - Models 09655-2403 & 09655-2404 No N/A N/A N/A

2

 086500007 Basket and Handle No N/A N/A N/A

3

 086550017 Restricting Check Valve (2"") No N/A N/A N/A

4

 086500022 Weir No N/A N/A N/A
