SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

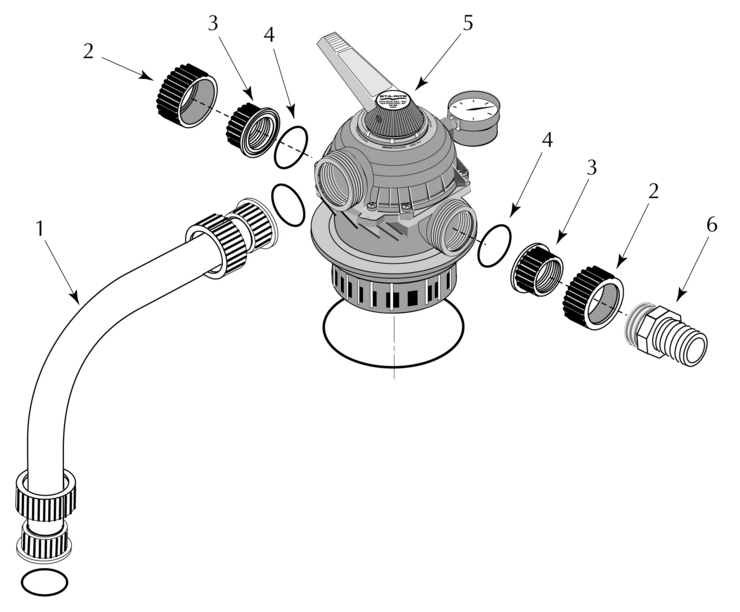

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Sta-Rite
Model Name: Waterford Hi-Rate Sand Filter System

Sta-Rite Waterford-HiRate-Sand-Filter-System replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 242030036 Flexible Pipe Assembly (15"" Tank) Yes 1 Day(s) $64.80

1

 242030033 Flexible Pipe Assembly (18"" Tank)(a) Yes 1 Day(s) $68.24

1

 242030034 Flexible Pipe Assembly (21 ""Tank)** Yes 1 Day(s) $70.22

2

 U11182P1 Union Collar No N/A N/A N/A

3

 U11201P1 Union Adapter Yes 1 Day(s) $7.58

5

 WC112148A Valve Assembly (incls. Valve, Clamp, Clamp Knob, O-Ring, and Pressure Gauge) No N/A N/A N/A

6

 149620012 Sight Glass Yes 1 Day(s) $5.28
