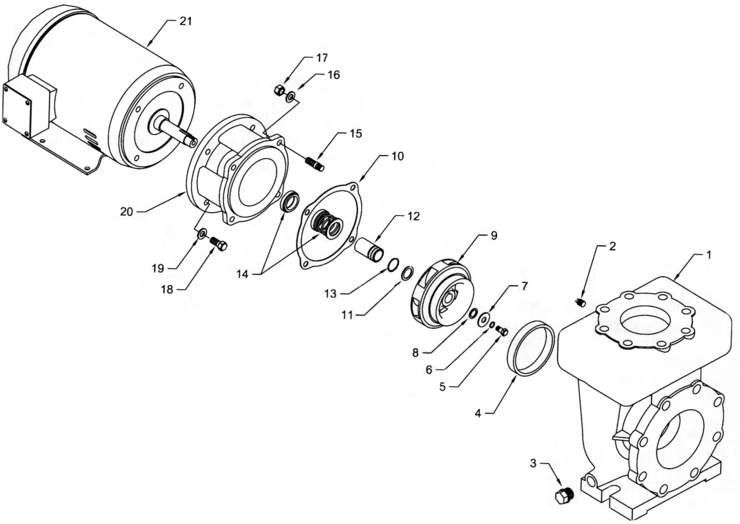

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterco / Baker Hydro

Model Name: Commercial Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	19B5010	Pump Housing	Yes	1 Day(s)	$621.00
2	19B5011	Drain Plug 1/4"" NPT	Yes	1 Day(s)	$8.01
3	19B5012	Pipe Plug 1/2"" NPT	Yes	1 Day(s)	$8.00
4	19B5013	Bronze Wear Ring	Yes	1 Day(s)	$34.45
5	19B5014	Cap Screw 38""-16x1""	Yes	1 Day(s)	$4.37
6A	19B5016	Seal Washer for 20 HP	Yes	1 Day(s)	$8.73
6	19B5015	Seal Washer for 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$7.76
7	19B5017	Impeller Gskt for 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$5.82
7A	19B5018	Impeller Gasket for 20 HP	Yes	1 Day(s)	$5.82
8A	19B5020	Impeller Washer for 20 HP	Yes	1 Day(s)	$19.89
8	19B5019	Impeller Washer 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$13.34
9	19B5021	Impeller 7-1/2 HP	Yes	1 Day(s)	$192.12
9A	19B5022	Impeller 10 HP	Yes	1 Day(s)	$192.12
9B	19B5023	Impeller 15 HP	Yes	1 Day(s)	$400.15
9C	19B5024	Impeller 20 HP	Yes	1 Day(s)	$435.99
10	19B5025	Volute Gasket	Yes	1 Day(s)	$5.82
11	19B5026	Sleeve Gasket 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$5.82
11A	19B5027	Sleeve Gasket 20 HP	Yes	1 Day(s)	$5.82
12A	19B5029	Shaft Sleeve 20 HP	Yes	1 Day(s)	$59.44
12	19B5028	Shaft Sleeve 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$47.06
13	19B5030	Retain Ring for 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$12.86
13A	19B5031	Retaining Ring for 20 HP	Yes	1 Day(s)	$25.71
14	19B5032	Mech Shaft Seal 7-1/2, 10 & 15 HP	Yes	1 Day(s)	$67.92
14A	19B5033	Mech Shaft Seal 20 HP	Yes	1 Day(s)	$114.50
15	19B5034	Stud 1/2""-13 x 1-1/2""	Yes	1 Day(s)	$13.58
16	19B5038	1/2"" Lock Washer	Yes	1 Day(s)	$4.38
17	19B5036	Nut 1/2""-13	Yes	1 Day(s)	$4.38
18	19B5037	Cap Screw 1/2""-13 x 1""	Yes	1 Day(s)	$6.30
19	19B5038	1/2"" Lock Washer	Yes	1 Day(s)	$4.38
20	19B5039	Pump Bracket 7-1/2 HP	Yes	1 Day(s)	$64.04
20A	19B5040	Pump Bracket 10 & 15 HP	Yes	1 Day(s)	$64.04
20B	19B5041	Pump Bracket 20 HP	Yes	1 Day(s)	$64.04
21	19B5042	7-1/2 HP 230V / 3PH	Yes	1 Day(s)	$1038.24
21A	19B5043	10HP 230V / 3PH	Yes	1 Day(s)	$1518.55
21B	19B5044	15HP 230V / 3PH	Yes	1 Day(s)	$1712.61
21C	19B5045	20HP 230V / 3PH	Yes	1 Day(s)	$2400.57
