SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

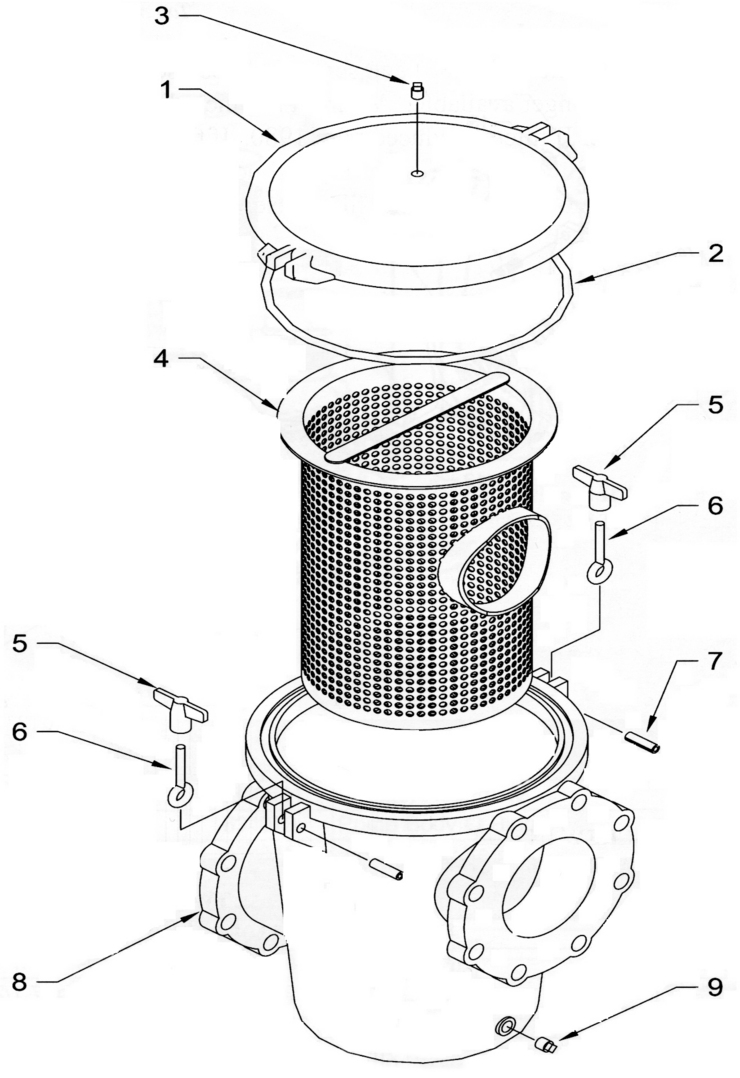

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Waterco / Baker Hydro
Model Name: Commercial Strainer

Waterco / Baker Hydro Commercial-Strainer replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 19B5050 Strainer Lid Yes 1 Day(s) $216.38

2

 19B5051 Strainer Lid O Ring Yes 1 Day(s) $33.23

3

 19B5012 Pipe Plug 1/4"" NPT Yes 1 Day(s) $8.00

4

 19B5052 Strainer Basket Assembly Yes 1 Day(s) $339.61

5

 19B5053 Hold Down Wing Nut Yes 1 Day(s) $36.14

6

 19B5054 Hold Down Bolt Yes 1 Day(s) $20.86

7

 19B5056 Hold Down Bolt Rolling Pin Yes 1 Day(s) $7.03

8

 19B5057 Strainer Housing Yes 1 Day(s) $693.78

9

 19B5011 Pipe Plug 1/2"" NPT Yes 1 Day(s) $8.01
