SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

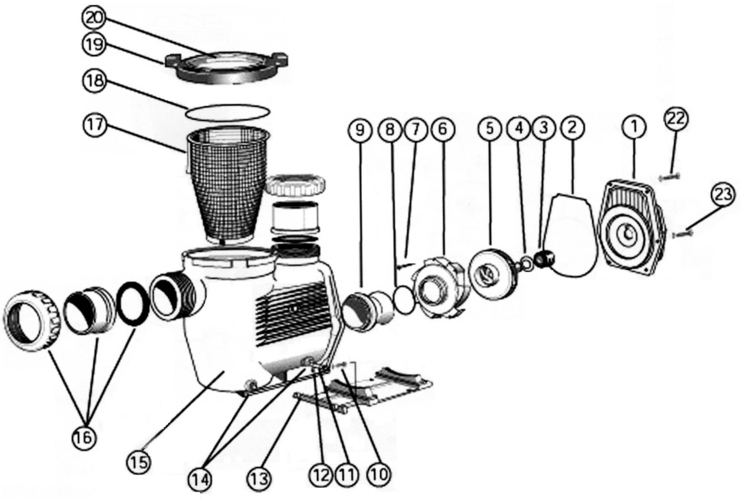

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Waterco / Baker Hydro
Model Name: Hydrostar

Waterco / Baker Hydro Hydrostar replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 6302181 Motor Washer Yes 1 Day(s) $1.81

-

 632018 Bracket Washer Yes 1 Day(s) $1.81

1

 6340681 Bracket Assembly No N/A N/A N/A

2

 634070 Pump Body O Ring Yes 1 Day(s) $37.07

3

 634016 Mechanical Seal Yes 1 Day(s) $14.90

4

 644772 Fiber Washer Yes 1 Day(s) $2.54

5B

 634057 7 hp Impeller No N/A N/A N/A

5A

 634056 5 hp Impeller No N/A N/A N/A

5

 634055 4 hp Impeller No N/A N/A N/A

9

 634064 Suction Nozzle Yes 1 Day(s) $16.51

10

 6340041 Pump Foot Bolt Yes 1 Day(s) $1.81

11

 634003 Pump Foot Washer Yes 1 Day(s) $1.81

12

 634006 Pump Foot Nut Yes 1 Day(s) $1.81

13

 634072 Pump Foot No N/A N/A N/A

14

 634023 Drain Plug Yes 1 Day(s) $2.71

15

 6340511 Pump Face H/L Pot Body 3"" Yes 1 Day(s) $301.67

16

 634080 3"" Half Union Assembly Yes 1 Day(s) $30.98

17

 634063 H/L Pot Basket Yes 1 Day(s) $34.54

18

 634071 H/L Pot Lid O Ring Yes 1 Day(s) $8.89

19

 634065 H/L Pot Lock Ring Yes 1 Day(s) $51.80

20

 634067 H/L Pot Lid Yes 1 Day(s) $28.69

22

 6340182 Bracket Bolt Yes 1 Day(s) $1.81

23

 634018 Motor Bolt Yes 1 Day(s) $1.81
