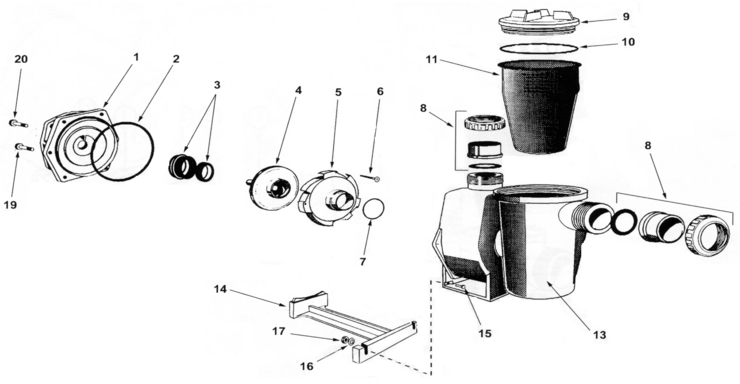

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Waterco / Baker Hydro
Model Name: Hydrostorm

Waterco / Baker Hydro Hydrostorm replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 6302181 Motor Washer Yes 1 Day(s) $1.81

-

 632018 Bracket Washer Yes 1 Day(s) $1.81

1

 63402011 Mounting Bracket Yes 1 Day(s) $81.01

2

 634017 Mounting Bracket O Ring Yes 1 Day(s) $4.06

3

 634016 Mechanical Seal Yes 1 Day(s) $14.90

4

 6340122 3/4 hp Impeller Yes 1 Day(s) $40.40

4D

 63401531 3 hp Impeller Yes 1 Day(s) $40.40

4C

 6340152 2 hp Impeller Yes 1 Day(s) $40.40

4B

 6340142 1 1/2 hp Impeller Yes 1 Day(s) $40.40

5

 6340101 Diffuser - 3/4 hp, 1 hp, 1 1/2hp & 2 hp Yes 1 Day(s) $28.44

5A

 6340103 Diffuser - 3 hp & 3 1/2 hp Yes 1 Day(s) $44.02

6

 6340081 Diffuser Screws Yes 1 Day(s) $1.81

7

 6340011 Diffuser O Ring No N/A N/A N/A

7A

 6340113 Diffuser O Ring - 3 hp Yes 1 Day(s) $4.97

9

 634000 H/L Pot Lid Yes 1 Day(s) $29.96

10

 63151 H/L Pot Lid O Ring Yes 1 Day(s) $8.89

11

 634001 H/L Pot Basket No N/A N/A N/A

12

 63400511 H/L Pot Body & Pump Face Yes 1 Day(s) $106.99

13

 634023 H/L Pot Drain Plug Yes 1 Day(s) $2.71

14

 6340221 Pump Foot Yes 1 Day(s) $16.25

15

 634004 Pump Foot Bolt Yes 1 Day(s) $1.81

16

 634003 Pump Foot Washer Yes 1 Day(s) $1.81

17

 634006 Pump Foot Nut Yes 1 Day(s) $1.81

19

 6340182 Bracket Bolt Yes 1 Day(s) $1.81

20

 634018 Motor Bolt Yes 1 Day(s) $1.81
