SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

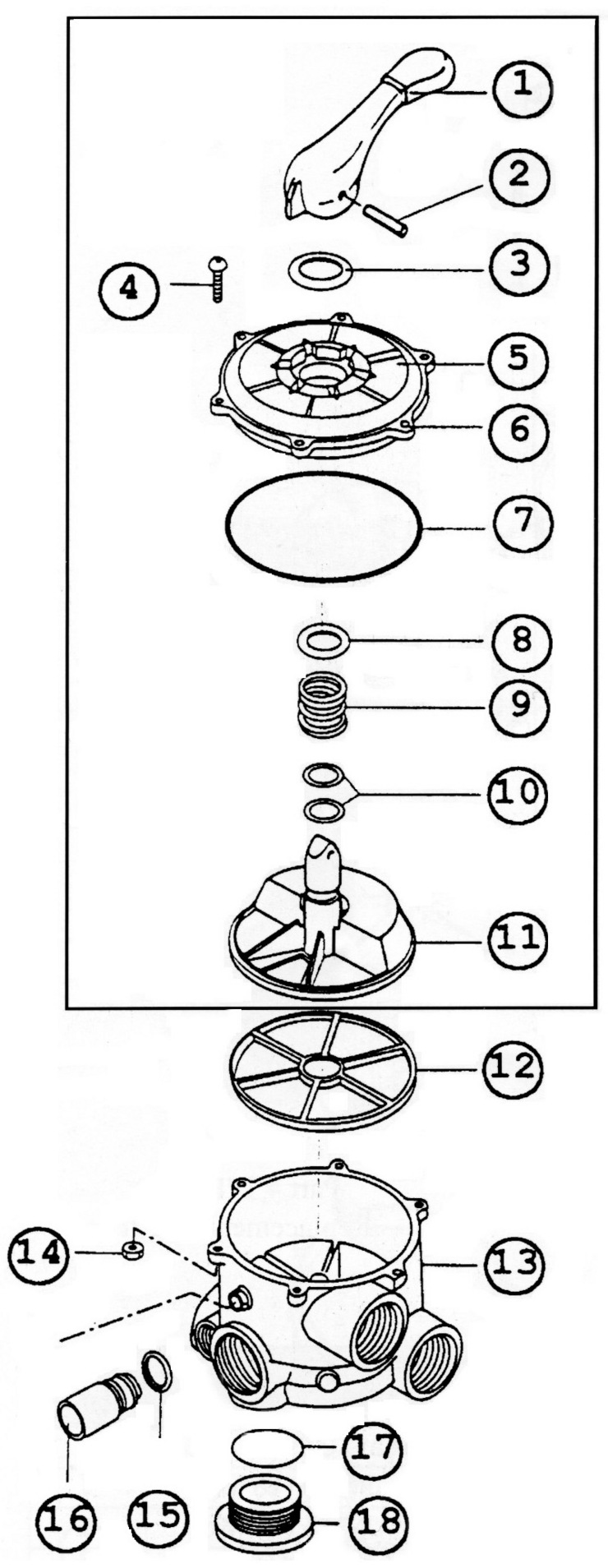

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Waterco / Baker Hydro
Model Name: Multiport Side Mount Valves Parts - 3

Waterco / Baker Hydro Multiport-Side-Mount-Valves-Parts-3 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 30S3000 3"" Valve Handle Yes 1 Day(s) $114.25

2

 30S3001 3"" Valve Handle Pin Yes 1 Day(s) $12.37

3

 30S3002 3"" Valve Handle Washer Upper Yes 1 Day(s) $12.37

4

 30C3003 3"" Valve Body Screw Yes 1 Day(s) $2.90

5

 30S3003 3"" Valve Body Decal No N/A N/A N/A

6

 30S3004 3"" Valve Body Cover Yes 1 Day(s) $224.39

7

 30S3005 3"" Valve Body Cover O-Ring Yes 1 Day(s) $30.08

8

 30S3006 3"" Valve Stem Washer Yes 1 Day(s) $11.51

9

 30S3007 3"" Valve Spring Yes 1 Day(s) $53.13

10

 30S3009 3"" Valve Shaft O-Ring Yes 1 Day(s) $28.14

11

 30S3010 3"" Valve Diverter Head Yes 1 Day(s) $217.59

12

 30S3011 3"" Spider Gasket Yes 1 Day(s) $65.50

13

 30S3012 3"" Valve Body No N/A N/A N/A

14

 30S3013 3"" Valve Body Nut Yes 1 Day(s) $2.18

17

 30S3019 3"" Valve Plug O-Ring Yes 1 Day(s) $4.85

18

 30S3020 3"" Valve Plug Yes 1 Day(s) $17.47

19

 30S3021 3"" Valve Key Assy (a) No N/A N/A N/A
