SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

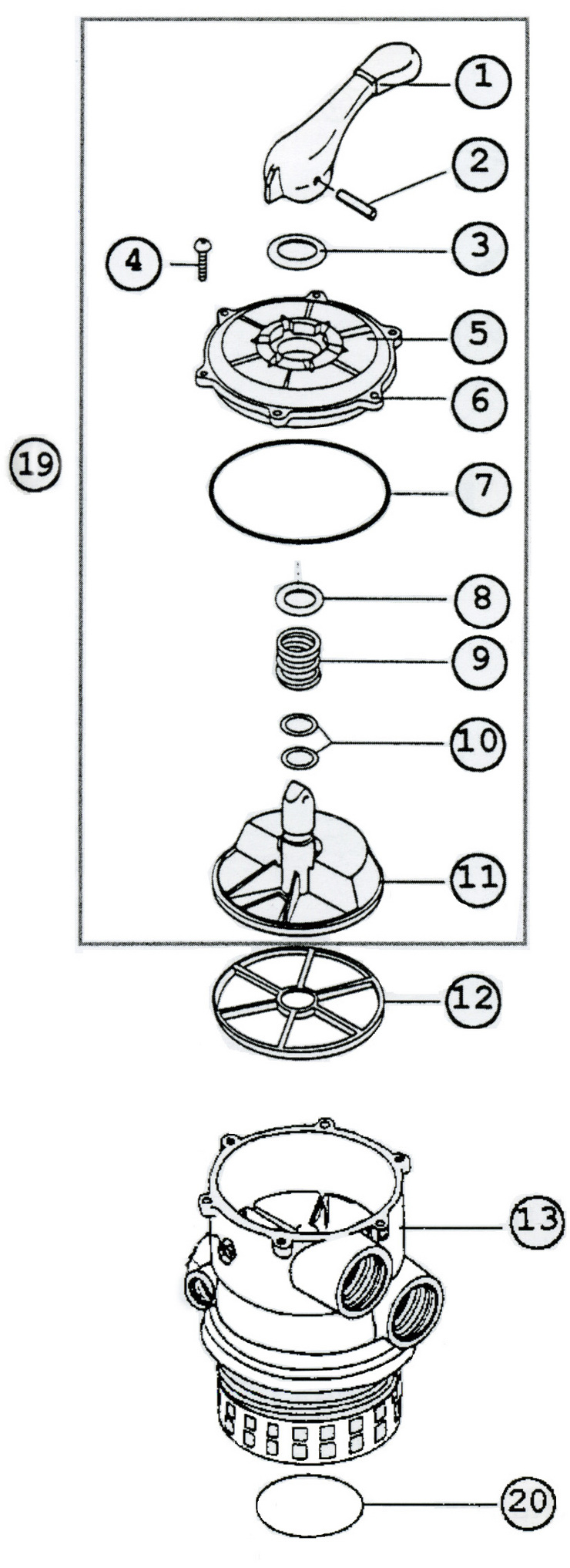

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Waterco / Baker Hydro
Model Name: Multiport Top Mount Valve Parts

Waterco / Baker Hydro Multiport-Top-Mount-Valve-Parts replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 30C3000 1-1/2"" & 2"" Valve Handle Yes 1 Day(s) $20.13

2

 30C3001 1-1/2"" & 2"" Valve Handle Pin Yes 1 Day(s) $7.77

3

 30C3002 1-1/2"" & 2"" Valve Handle Washer Upper Yes 1 Day(s) $6.55

4

 30C3003 1-1/2"" & 2"" Valve Body Screw Yes 1 Day(s) $2.90

5

 00B9200 1-1/2"" Valve Body Decal No N/A N/A N/A

5

 00B9201 2"" Valve Body Decal No N/A N/A N/A

6

 30C3104 2"" Valve Body Cover Yes 1 Day(s) $37.54

6

 30C3004 1-1/2"" Valve Body Cover Yes 1 Day(s) $30.57

7

 30C3005 1-1/2"" Vlve Body Cover O-Ring Yes 1 Day(s) $11.40

7

 30C3105 2"" Valve Body Cover O-Ring Yes 1 Day(s) $14.43

8

 30C3008 1-1/2"" & 2"" Valve Stem Washer No N/A N/A N/A

10

 30C3009 1-1/2"" & 2"" Valve Shaft O-Ring Yes 1 Day(s) $6.31

11

 30C3010 1-1/2"" Valve Diverter Head Yes 1 Day(s) $48.76

11

 30C3110 2"" Valve Diverter Head Yes 1 Day(s) $55.88

12

 30C3011 1-1/2"" Valve Spider Gasket Yes 1 Day(s) $20.87

13

 30B3012 1-1/2"" Valve Body No N/A N/A N/A

14

 30C3013 1-1/2"" & 2"" Valve Body Nut Yes 1 Day(s) $2.90

15

 30C3015 1-1/2"" & 2"" Valve Sight Glass Gasket Yes 1 Day(s) $3.64

16

 30C3016 1-1/2"" & 2"" Valve Sight Glass Yes 1 Day(s) $9.22

19

 30C3021 1-1/2"" Valve Key Assy (a) Yes 1 Day(s) $168.96

19

 30C3022 2"" Valve Key Assy (a) Yes 1 Day(s) $181.48

20

 30C3018 1-1/2"" & 2"" Valve Center Tube O-Ring Yes 1 Day(s) $1.88
