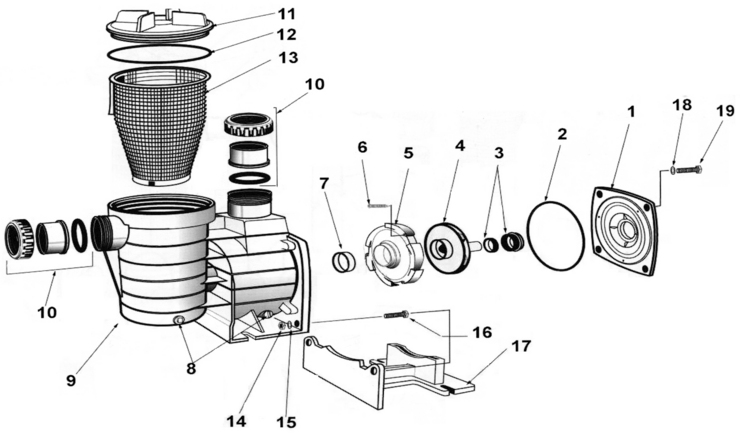

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterco / Baker Hydro

Model Name: Supatuf



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	6350214	Adaptor Plate	Yes	1 Day(s)	$19.55
2	635028	Pump Body O Ring	Yes	1 Day(s)	$4.57
3	634016	Mechanical Seal	Yes	1 Day(s)	$14.90
4C	635013	2 hp Impeller	Yes	1 Day(s)	$40.12
4B	635008	1 1/2 hp Impeller	Yes	1 Day(s)	$40.12
4A	635006	1 hp Impeller	Yes	1 Day(s)	$40.12
4	635005	3/4 hp Impeller	Yes	1 Day(s)	$40.12
5	635017	Diffuser	Yes	1 Day(s)	$27.42
6	6340081	Diffuser Screws	Yes	1 Day(s)	$1.81
7	6340011	Diffuser O Ring	No	N/A	N/A	N/A
8	634023	Drain Plug	Yes	1 Day(s)	$2.71
9	6350191	Pump Face H/L Pot Body	Yes	1 Day(s)	$99.03
11	634000	H/L Pot Lid	Yes	1 Day(s)	$29.96
12	63151	H/L Pot Lid O Ring	Yes	1 Day(s)	$8.89
13	634001	H/L Pot Basket	No	N/A	N/A	N/A
14	634006	Pump Foot Nut	Yes	1 Day(s)	$1.81
15	634003	Pump Foot Washer	Yes	1 Day(s)	$1.81
16	634004	Pump Foot Bolt	Yes	1 Day(s)	$1.81
17	6340223	Foot Base	Yes	1 Day(s)	$11.17
18	630181	Base Washer (Pre March 2003)	No	N/A	N/A	N/A
18A	632018	Base Washer (Post March 2003)	Yes	1 Day(s)	$1.81
19	6340181	Base Bolt (Pre March 2003)	Yes	1 Day(s)	$1.81
19A	635053	Base Bolt (Post March 2003)	Yes	1 Day(s)	$1.81
