SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

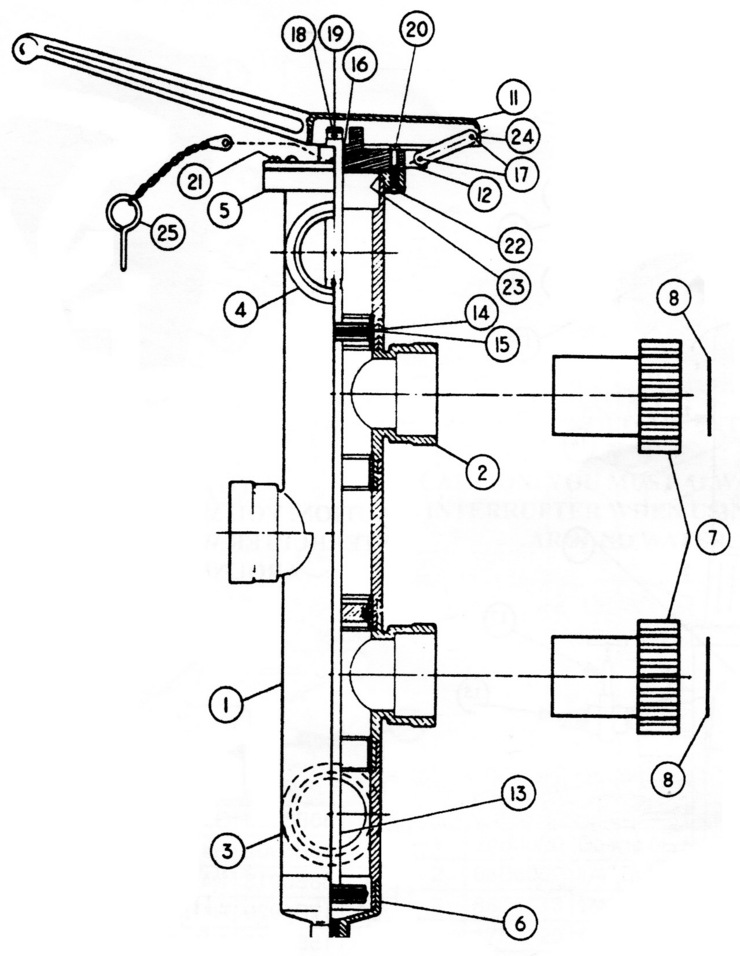

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Waterco / Baker Hydro
Model Name: Vertilever (Push-Pull) Valve Parts

Waterco / Baker Hydro Vertilever-PushPull-Valve-Parts replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 31B0080 Housing Assy (incl's. #2 & #4) Yes 1 Day(s) $125.17

2

 31B0008 Center Housing Module No N/A N/A N/A

3

 31B0022 Bottom Housing Module Yes 1 Day(s) $40.03

4

 31B0020 Top Housing Module Yes 1 Day(s) $40.27

5

 31B0003 Valve Ring Adapter Yes 1 Day(s) $15.28

6

 31B0004 Housing Bottom Cap Yes 1 Day(s) $15.28

11

 31B0009 Valve Handle Yes 1 Day(s) $102.13

12

 31B0002 Index Plate Yes 1 Day(s) $143.12

13

 31B0005 Piston Shaft Assy Yes 1 Day(s) $142.20

14

 31B0024 Valve O-Ring Kit (incld's. # 15 & # 19) Yes 1 Day(s) $22.56

15

 00B7014 Piston O-Ring Yes 1 Day(s) $7.76

16

 31B0035 Index Plate/Shaft O-Ring Yes 1 Day(s) $2.18

17

 00B8003 1/8"" x 11/16"" SS Rivet Yes 1 Day(s) $2.18

18

 00B8004 1/8"" x 1"" SS Rivet Yes 1 Day(s) $2.18

19

 00B8005 1/8"" SS Rivet Push Nut Yes 1 Day(s) $2.18

20

 00B1006 #10 - 32 x 1-1/4"" SS Screw Yes 1 Day(s) $2.18

21

 00B1005 #10 - 32 x 1"" SS Screw Yes 1 Day(s) $2.18

22

 00B0003 #10 - 32 SS Nut Yes 1 Day(s) $2.18

23

 31B0015 Index Plate Gasket Yes 1 Day(s) $3.88

24

 31B0010 Linkage Bar Yes 1 Day(s) $9.46

25

 31B0012 Lock Pin & Chain Yes 1 Day(s) $12.61

26

 88B3071 1/4"" Plastic Plug Yes 1 Day(s) $7.03
