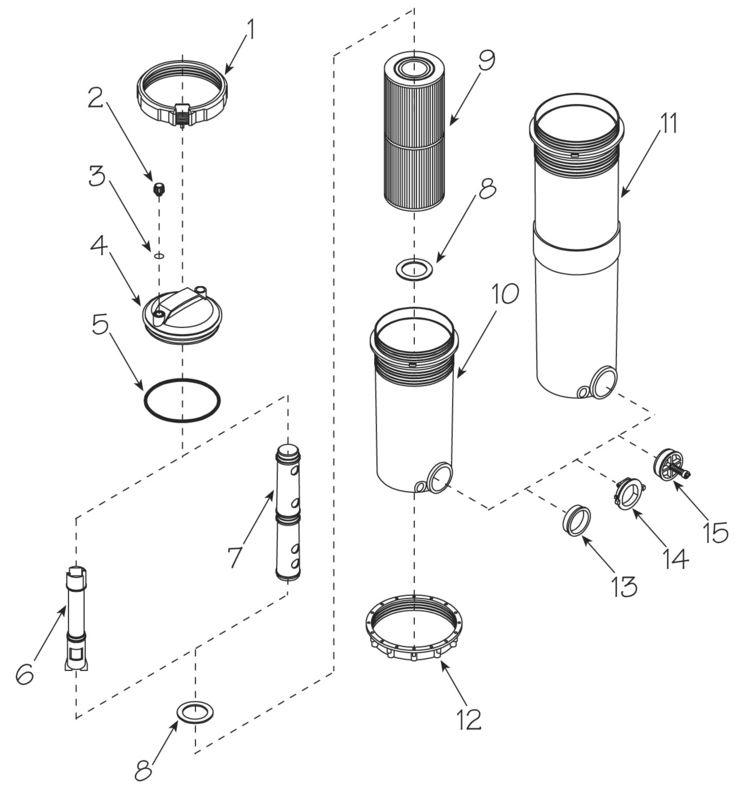

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Waterway

Model Name: 1 1/2" & 2" Top-Load Filters



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
4	511-1000	Filter Lid	Yes	1 Day(s)	$18.34
6	500-1070	Brominator - 10 Tablet	Yes	1 Day(s)	$17.41
7	500-1060	Flow Restriction Tube	Yes	1 Day(s)	$10.97
9	817-7500	Filter Cartridge - 75 Sq. Ft.	Yes	1 Day(s)	$67.23
9	817-1000	Filter Cartridge - 100 Sq. Ft.	Yes	1 Day(s)	$73.78
10	550-5060	2" Filter Body - with Plug	Yes	1 Day(s)	$68.74
10	550-5010	2" Filter Body - with Bypass	Yes	1 Day(s)	$68.74
10	550-4990	1 1/2" Filter Body-with Plug	Yes	1 Day(s)	$68.74
10	550-5000	1 1/2" Filter Body - with Bypass	Yes	1 Day(s)	$68.74
11	550-5110	1 1/2" Extended Filter Body - with Bypass	Yes	1 Day(s)	$103.65
11	550-5150	1 1/2" Extended Filter Body - with Plug	Yes	1 Day(s)	$96.45
11	550-5230	2" Extended Filter Body - with Bypass	Yes	1 Day(s)	$110.67
11	550-5220	2" Extended Filter Body - with Plug	Yes	1 Day(s)	$102.98
13	715-9900	2" Plug	Yes	1 Day(s)	$1.86
13	715-1010	1 1/2" Plug	Yes	1 Day(s)	$1.86
13	715-9900	2" Plug	Yes	1 Day(s)	$1.86
13	715-1010	1 1/2" Plug	Yes	1 Day(s)	$1.86
13	715-1010	1 1/2" Plug	Yes	1 Day(s)	$1.86
14	600-1000	1 1/2" Bypass Valve Assembly	Yes	1 Day(s)	$6.04
14	600-1000	1 1/2" Bypass Valve Assembly	Yes	1 Day(s)	$6.04
14	600-1000	1 1/2" Bypass Valve Assembly	Yes	1 Day(s)	$6.04
