SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

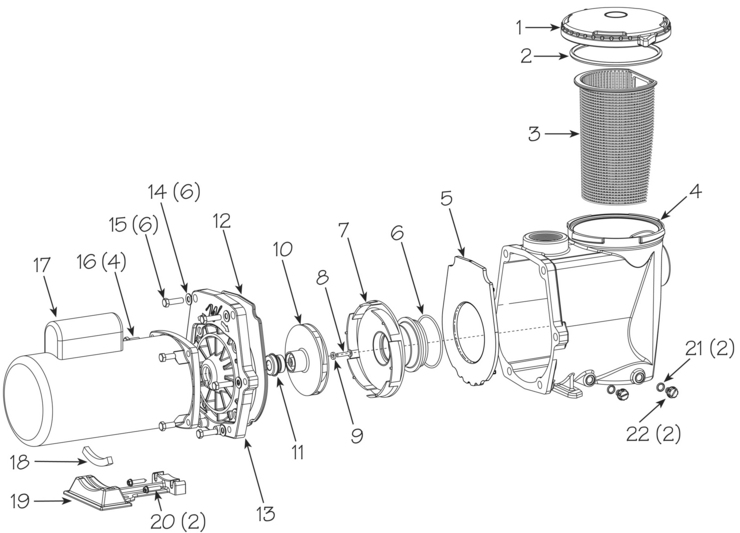

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Waterway
Model Name: Champion Series

Waterway Champion-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 352-0850U CHAMPS-225 Motor No N/A N/A N/A

-

 310-7430 CHAMPS-220 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7420 CHAMPS-215 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7440 CHAMPS-225 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7430 CHAMPS-220 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7420 CHAMPS-215 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7410 CHAMPS-110 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7400 CHAMPS-107 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7450 CHAMPE-130 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7440 CHAMPS-225 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7440 CHAMPS-225 Impeller Assembly Yes 1 Day(s) $42.91

-

 351-0440 CHAMPE-110 Motor Yes 1 Day(s) $368.52

-

 351-0670 CHAMPE-115 Motor Yes 1 Day(s) $360.79

-

 352-0650U CHAMPS-220 Motor No N/A N/A N/A

-

 352-0450U CHAMPS-215 Motor No N/A N/A N/A

-

 351-1231 CHAMPS-130 Motor No N/A N/A N/A

-

 351-1031 CHAMPS-125 Motor Yes 1 Day(s) $542.31

-

 351-0821 CHAMPS-120 Motor Yes 1 Day(s) $404.05

-

 351-0431 CHAMPS-110 Motor Yes 1 Day(s) $302.33

-

 351-0331 CHAMPS-107 Motor Yes 1 Day(s) $291.50

-

 351-1450 CHAMPE-130 Motor Yes 1 Day(s) $695.93

-

 351-0850 CHAMPE-120 Motor Yes 1 Day(s) $530.48

-

 310-7430 CHAMPS-220 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7420 CHAMPS-215 Impeller Assembly Yes 1 Day(s) $42.91

-

 310-7460 Diffuser Assembly - CHAMPE-130 Only Yes 1 Day(s) $52.31

-

 351-0631 CHAMPS-115 Motor Yes 1 Day(s) $353.50

-

 310-7440 CHAMPS-225 Impeller Assembly Yes 1 Day(s) $42.91

1

 319-3260 Trap Lid No N/A N/A N/A

2

 805-0436 Lid O-Ring Yes 1 Day(s) $2.38

3

 319-1400 Basket Yes 1 Day(s) $11.29

4

 315-1400 Pump Housing Yes 1 Day(s) $191.62

5

 319-1420 Diffuser Plate Yes 1 Day(s) $35.08

6

 805-0238 Diffuser O-Ring Yes 1 Day(s) $2.39

7

 310-7470 Diffuser Assembly - All Except CHAMPE-130 Yes 1 Day(s) $52.31

8

 819-4360 Screw - 20 x 1"" Left Hand Thread Yes 1 Day(s) $3.09

9

 711-4300 Gasket - Left Hand Screw Yes 1 Day(s) $6.13

10

 310-7410 CHAMPE-107 Impeller Assembly Yes 1 Day(s) $42.91

11

 319-3110B Pump Seal Set - Viton Yes 1 Day(s) $15.53

12

 711-1400 Gasket - Face Plate Yes 1 Day(s) $10.09

13

 311-1450 Face Plate Yes 1 Day(s) $64.61

14

 820-0017 Plate Washer Yes 1 Day(s) $0.55

15

 819-0020 Hex Bolt 3/8 - 16 x 1 1/4"" Yes 1 Day(s) $2.40

16

 819-0035 Hex Bolt 3/8 - 16 x 7/8"" Yes 1 Day(s) $2.31

17

 351-0332 CHAMPE-107 Motor Yes 1 Day(s) $526.01

18

 672-1310 Motor Support Yes 1 Day(s) $8.06

19

 319-1500 Motor Base Yes 1 Day(s) $37.40

20

 819-0013 Hex Screw Slotted - 1/4"" x 1 1/4"" Yes 1 Day(s) $0.91

22

 715-1201 3/8"" Drain Plug Yes 1 Day(s) $1.75
