SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

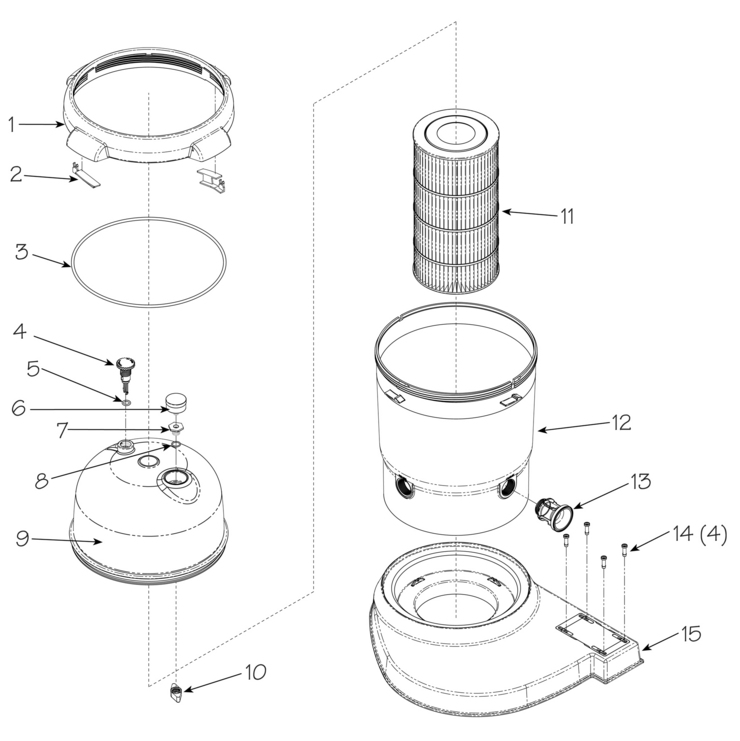

Here is the schematic view you requested:

Category: Cartridge Filter Parts
Manufacturer name: Waterway
Model Name: ClearWater II Cartridge Filter

Waterway ClearWater-II-Cartridge-Filter replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 519-7440 Locknut Assembly No N/A N/A N/A

2

 519-7450 Handle Spring Assembly No N/A N/A N/A

3

 805-0460 Lid O-Ring Yes 1 Day(s) $11.81

4

 602-0200 Air Relief Plug No N/A N/A N/A

5

 805-0208 O-Ring - Air Relief No N/A N/A N/A

7

 519-7430 Gauge - Fitting Adapter No N/A N/A N/A

8

 805-0116 O-Ring - Adapter No N/A N/A N/A

9

 519-7410 Lid Assembly (small) Yes 1 Day(s) $137.22

11

 817-200N 200 Sq. Ft. Cartridge Yes 1 Day(s) $219.70

11

 817-150N 150 Sq. Ft. Cartridge Yes 1 Day(s) $184.25

11

 817-100N 100 Sq. Ft. Cartridge Yes 1 Day(s) $127.35

11

 817-075N 75 Sq. Ft. Cartridge Yes 1 Day(s) $109.42

12

 515-7250 Filter Body Yes 1 Day(s) $390.39

13

 419-7241 Plug - 2" x 1 1/2" MPT Yes 1 Day(s) $10.04

13

 419-7241 Plug - 2" x 1 1/2" MPT Yes 1 Day(s) $10.04

14

 429-7221 Base Fasteners Yes 1 Day(s) $1.56

15

 672-7400 ClearWater II Base No N/A N/A N/A
