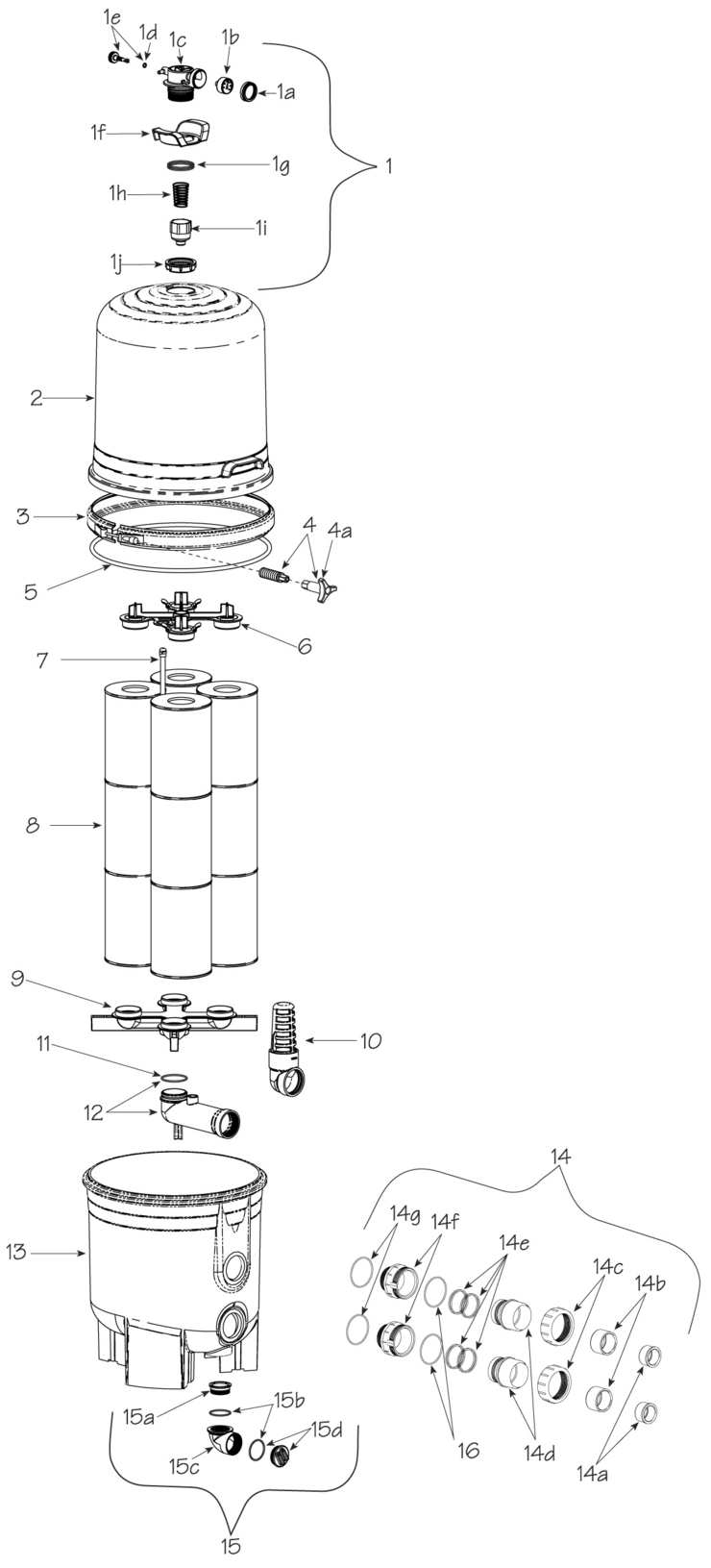

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Waterway

Model Name: Crystal Water Cartridge Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	550-4230	Pressure Relief Valve Assembly	Yes	1 Day(s)	$67.72
1b	830-4200	Pressure Gauge	No	N/A	N/A	N/A
1a	602-4211	Service Bezel	No	N/A	N/A	N/A
1e	550-4240	Pressure Relief Screw with O-Ring	Yes	1 Day(s)	$3.37
1	550-4230	Pressure Relief Valve Assembly	Yes	1 Day(s)	$67.72
1j	718-4200	Valve Nut	No	N/A	N/A	N/A
1i	519-4370	Plunger	Yes	1 Day(s)	$6.05
1h	827-8150	Filter Internal Spring	Yes	1 Day(s)	$7.06
1c	519-4281	Air Relief Body	Yes	1 Day(s)	$40.94
1g	805-0233	O-Ring	Yes	1 Day(s)	$7.52
1f	602-4201	Handle - Pressure Relief Valve	Yes	1 Day(s)	$19.96
1e	550-4240	Pressure Relief Screw with O-Ring	Yes	1 Day(s)	$3.37
1d	805-0110	O-Ring	Yes	1 Day(s)	$1.69
1a	602-4211	Service Bezel	No	N/A	N/A	N/A
1c	519-4281	Air Relief Body	Yes	1 Day(s)	$40.94
1d	805-0110	O-Ring	Yes	1 Day(s)	$1.69
1f	602-4201	Handle - Pressure Relief Valve	Yes	1 Day(s)	$19.96
1b	830-4200	Pressure Gauge	No	N/A	N/A	N/A
1j	718-4200	Valve Nut	No	N/A	N/A	N/A
1i	519-4370	Plunger	Yes	1 Day(s)	$6.05
1g	805-0233	O-Ring	Yes	1 Day(s)	$7.52
1h	827-8150	Filter Internal Spring	Yes	1 Day(s)	$7.06
2	550-4470	425 Sq. Ft. Filter Lid w/ Cartridge Crystal Water Filter Labels	Yes	1 Day(s)	$313.13
2	550-4460	325 Sq. Ft. Filter Lid w/ Cartridge Crystal Water Filter Labels	Yes	1 Day(s)	$271.38
2	550-4480	525 Sq. Ft. Filter Lid w/ Cartridge Crystal Water Filter Labels	Yes	1 Day(s)	$354.88
3	550-4260	Metal Clamp with Clamp Spring Assembly	Yes	1 Day(s)	$276.40
3	550-4260	Metal Clamp with Clamp Spring Assembly	Yes	1 Day(s)	$276.40
4a	519-4351	Clamp Wrench	Yes	1 Day(s)	$6.86
4	550-4250	Clamp Spring Assembly and Wrench	Yes	1 Day(s)	$13.30
4	550-4250	Clamp Spring Assembly and Wrench	Yes	1 Day(s)	$13.30
4a	519-4351	Clamp Wrench	Yes	1 Day(s)	$6.86
5	805-0000	O-Ring Main Body	Yes	1 Day(s)	$17.81
5	805-0000	O-Ring Main Body	Yes	1 Day(s)	$17.81
6	519-4320	Plug - Cartridge Manifold	Yes	1 Day(s)	N/A	N/A
7	550-4370	Air Relief Assembly w/ tube - 325 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$20.48
7	550-4340	Air Relief Assembly w/tube - 425 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$27.63
7	550-4330	Air Relief Assembly w/tube - 525 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$34.81
8	817-0106	106 1/4 Sq. Ft. Cartridge - 425 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$122.82
8	817-0131	131 1/4 Sq. Ft. Cartridge - 525 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$137.89
8	817-0081	81 1/4 Sq. Ft. Cartridge - 325 Sq. Ft. Cartridge Filter	Yes	1 Day(s)	$110.56
9	550-4300	Cartridge Manifold Assembly	Yes	1 Day(s)	$66.53
10	550-4500	Intake Diffuser Assembly	No	N/A	N/A	N/A
11	805-0230	O-Ring	Yes	1 Day(s)	$0.40
12	550-4360	Long Elbow with Venturi Air Bleeder and O-Ring	Yes	1 Day(s)	$51.18
13	550-4400	Filter Body with Labels	Yes	1 Day(s)	$354.88
14	550-4270	Bulkhead Fittings Pack-Fitting Nuts O-Ring 2 1/2" to 2" Reducers	Yes	1 Day(s)	$42.99
14f	419-4201	2 1/2" Bulkhead Fitting	Yes	1 Day(s)	$24.56
14g	805-0339	O-Ring	Yes	1 Day(s)	$5.21
14a	421-4071	Reducer 1 1/2" to 2"	Yes	1 Day(s)	$1.65
14c	415-4211	2 1/2" Union Nut	Yes	1 Day(s)	$7.70
14g	805-0339	O-Ring	Yes	1 Day(s)	$5.21
14e	805-0232	O-Ring	Yes	1 Day(s)	$0.86
14d	417-2201	2 1/2" Tailpiece w/ Piston O-Ring Groove	Yes	1 Day(s)	$5.12
14c	415-4211	2 1/2" Union Nut	Yes	1 Day(s)	$7.70
14f	419-4201	2 1/2" Bulkhead Fitting	Yes	1 Day(s)	$24.56
14b	421-4201	Reducer 2 1/2" to 2"	Yes	1 Day(s)	$4.35
14e	805-0232	O-Ring	Yes	1 Day(s)	$0.86
15a	215-4200	Base Wall Fitting	Yes	1 Day(s)	$7.99
15d	400-6651	2" Plug Assembly with O-Ring	Yes	1 Day(s)	$2.32
15c	411-4201	2" Drain Elbow	No	N/A	N/A	N/A
15b	805-0227	O-Ring	Yes	1 Day(s)	$2.82
15a	215-4200	Base Wall Fitting	Yes	1 Day(s)	$7.99
15d	400-6651	2" Plug Assembly with O-Ring	Yes	1 Day(s)	$2.32
15	400-6610	Drain Elbow Assembly w/ Drain Plug - O-Rings & Base Fitting	Yes	1 Day(s)	$21.44
15	400-6610	Drain Elbow Assembly w/ Drain Plug - O-Rings & Base Fitting	Yes	1 Day(s)	$21.44
15d	400-6651	2" Plug Assembly with O-Ring	Yes	1 Day(s)	$2.32
15b	805-0227	O-Ring	Yes	1 Day(s)	$2.82
15c	411-4201	2" Drain Elbow	No	N/A	N/A	N/A
15b	805-0227	O-Ring	Yes	1 Day(s)	$2.82
16	711-4200	2 1/2" Beveled Gasket	Yes	1 Day(s)	$3.22
16	711-4200	2 1/2" Beveled Gasket	Yes	1 Day(s)	$3.22
