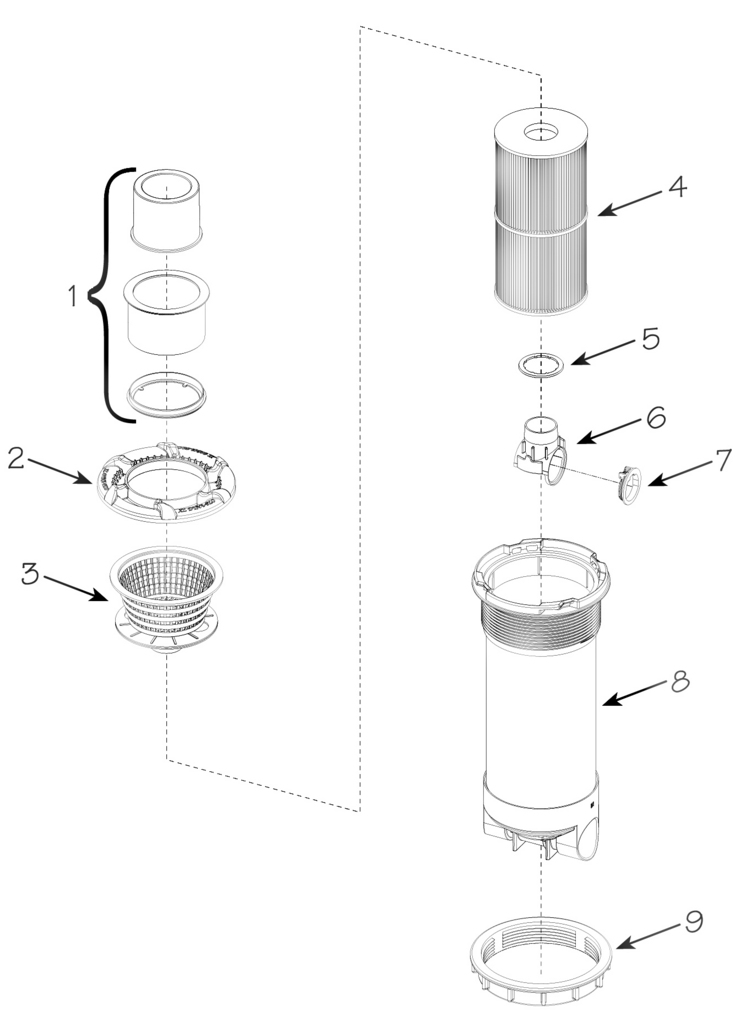

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Waterway

Model Name: Dyna-Flo XL Skim Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	817-0019	100 Sq. Ft Dynno-Flo XL Cartridge - 2 3/8" x 6 9/16" x 13 13/16"	Yes	1 Day(s)	$111.30
-	817-0018	75 Sq. Ft Dynno-Flo XL Cartridge - 2 3/8" x 6 9/16" x 13 5/16"	Yes	1 Day(s)	$89.45
1	550-8620	Weir Assembly	Yes	1 Day(s)	$20.51
2	519-8260	Trim Ring	Yes	1 Day(s)	$10.66
3	550-8630	Basket Assembly	No	N/A	N/A	N/A
4	817-0017	50 Sq. Ft Dynno-Flo XL Cartridge - 2 3/8" x 6 9/16" x 13 5/16"	Yes	1 Day(s)	$70.06
5	711-8200	Spacer Ring	Yes	1 Day(s)	$6.58
6	602-8210	Bottom Body Insert	Yes	1 Day(s)	$11.35
7	600-1021	2 1/2" Bypass Valve	No	N/A	N/A	N/A
9	718-8200	Nut	Yes	1 Day(s)	$11.48
