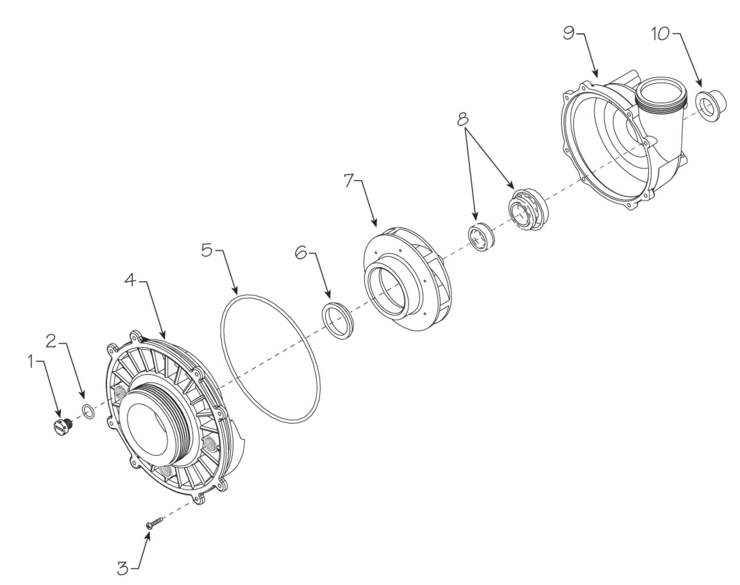

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterway

Model Name: Executive Wet Ends



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	715-1201	3/8"" Plug-Air Relief	Yes	1 Day(s)	$1.75
1	715-1201	3/8"" Plug-Air Relief	Yes	1 Day(s)	$1.75
2	805-0111	O-Ring - #111 - Executive - Wet End Drain Plug	Yes	1 Day(s)	$0.36
2	805-0111	O-Ring - #111 - Executive - Wet End Drain Plug	Yes	1 Day(s)	$0.36
3	819-1110	Screw - No. 8 -32 x 7/16 PPH	Yes	1 Day(s)	$0.99
3	819-1110	Screw - No. 8 -32 x 7/16 PPH	Yes	1 Day(s)	$0.99
4	311-1220	""Executive"" Faceplate 56 Frame 2""	Yes	1 Day(s)	$32.35
4	311-1220	""Executive"" Faceplate 56 Frame 2""	Yes	1 Day(s)	$32.35
6	319-1380	Wear Ring - Executive Pump 1-2 & 3 H.P.	Yes	1 Day(s)	$4.57
6	319-1370	Wear Ring - Executive Pump 4-5 H.P.	Yes	1 Day(s)	$4.57
6	319-1380	Wear Ring - Executive Pump 1-2 & 3 H.P.	Yes	1 Day(s)	$4.57
6	319-1370	Wear Ring - Executive Pump 4-5 H.P.	Yes	1 Day(s)	$4.57
7	310-4230	1 H.P. Motor - 3/4 H.P. Impeller Assembly	Yes	1 Day(s)	$22.39
8	319-3100B	Pump Seal Set	Yes	1 Day(s)	$16.67
8	319-3100B	Pump Seal Set	Yes	1 Day(s)	$16.67
9	315-1240	""Executive"" Volute 48 Frame with Inserts	Yes	1 Day(s)	$25.50
