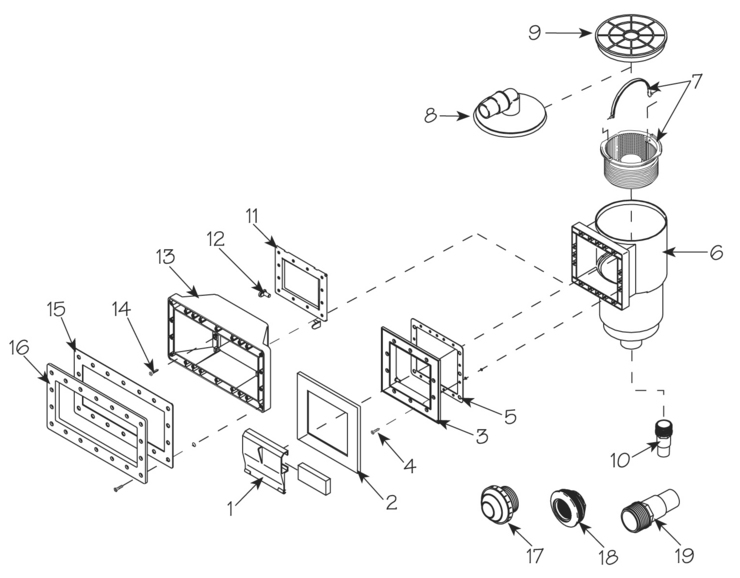

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Waterway

Model Name: Flo-Pro II Above Ground Skimmer



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	542-3060	Weir Door with Foam - White	Yes	1 Day(s)	$7.75
1	542-3067	Weir Door with Foam - Gray	Yes	1 Day(s)	$7.75
2	519-3090	Trim Plate-ABS - White (Optional)	Yes	1 Day(s)	$10.09
2	519-3097	Trim Plate-ABS - Gray (Optional)	Yes	1 Day(s)	$10.09
3	519-3180	Mounting Plate - Front Access - White	Yes	1 Day(s)	$12.09
3	519-3187	Mounting Plate - Front Access - Gray	Yes	1 Day(s)	$12.09
4	819-0006	Screw - #12 x 1 1/4"" PFH 18-8 Sms (10 for Regular Skimmer) (18 for Wide Mouth)	Yes	1 Day(s)	$0.44
5	711-0060	Wall Protection Gasket - Regular	Yes	1 Day(s)	$7.05
7	550-1030	Basket - Assembly	Yes	1 Day(s)	$10.09
8	519-3150	Vacuum Plate - Front Access with 90° Elbow	Yes	1 Day(s)	$9.21
9	519-3030	Lid - Front Access - White	Yes	1 Day(s)	$4.84
9	519-3037	Lid - Front Access - Gray	Yes	1 Day(s)	N/A	N/A
10	417-6140	Hose Adapter - 1 1/2"" MPT x 1 1/2"" Hose	Yes	1 Day(s)	$2.02
10	417-6147	Hose Adapter - 1 1/2"" MPT x 1 1/2"" Hose - Gray	Yes	1 Day(s)	$2.02
11	711-5110	Gasket - Front Access - Wide Mouth	Yes	1 Day(s)	$10.30
12	519-4027	Hinges - Weir Door - Wide Mouth - Gray	Yes	1 Day(s)	$0.97
12	519-4020	Hinges - Weir Door - Wide Mouth	Yes	1 Day(s)	$0.97
13	519-4100	Body - Wide Mouth - White	Yes	1 Day(s)	$33.41
13	519-4107	Body - Wide Mouth - Gray	Yes	1 Day(s)	$33.41
14	819-0006	Screw- No. 12 x 1 1/4"" - PFH	Yes	1 Day(s)	$0.44
15	711-0070	Wall Protection Gasket Wide Mouth	Yes	1 Day(s)	$8.13
16	519-4110	Mounting Plate - Wide Mouth - White	No	N/A	N/A	N/A
16	519-4117	Mounting Plate - Wide Mouth - Gray	Yes	1 Day(s)	$14.74
17	400-1417E	Eyeball Fitting - 1"" Eye - Gray	Yes	1 Day(s)	$3.30
17	400-1410E	Eyeball Fitting - 1"" Eye - White	Yes	1 Day(s)	$2.24
17	400-1417D	Eyeball Fitting - 3/4"" Eye - Gray	Yes	1 Day(s)	$3.15
17	400-1410D	Eyeball Fitting - 3/4"" Eye - White	Yes	1 Day(s)	$2.24
18	400-9170	Wall Fitting with Locknut and Gaskets - White	Yes	1 Day(s)	$6.72
19	417-6140	Hose Adapter - 1 1/2"" Smooth (Shown)	Yes	1 Day(s)	$2.02
19	417-6150	Hose Adapter - 1 1/2"" Barb	Yes	1 Day(s)	$2.02
