Here is the schematic view you requested:

Category: Skimmers
Manufacturer name: Waterway
Model Name: Flo-Pro Skimmer

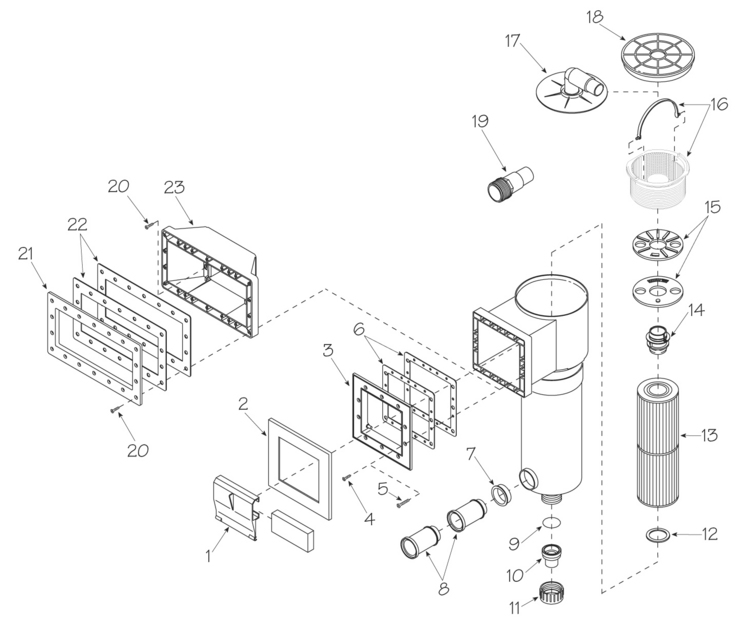

Waterway FloPro-Skimmer replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

519-3170 Extension - Support Piece - Short Throat Yes 1 Day(s) $58.18

1

542-3060 Weir Door with Foam (White) Yes 1 Day(s) $7.75

2

519-3090 Trim Plate-ABS - Front Access (Optional) Yes 1 Day(s) $10.09

3

519-3080 Mounting Plate - Front Access Short Throat Only Yes 1 Day(s) $12.09

3

519-3180 Mounting Plate - Front Access Long Throat Only Yes 1 Day(s) $12.09

4

819-0006 Screw - No. 12 x 1 1/4"" PFH 18-8 Sms Yes 1 Day(s) $0.44

5

819-9000 Optional - Screw - No. 12 x 1 1/4"" PFH 18-8 Sms Yes 1 Day(s) $0.48

6

711-0060 Wall Protection Gasket - Weir Body Yes 1 Day(s) $7.05

7

715-2030 2"" Plug Yes 1 Day(s) $3.58

8

519-3190 Support Piece - Wide Mouth Yes 1 Day(s) $6.72

9

805-0226 O-Ring - Union Yes 1 Day(s) $0.40

10

417-6020 1 1/2"" Spg. Tailpiece - w/ O-Ring Groove Yes 1 Day(s) $1.79

11

415-4000 1 1/2"" Union Nut No N/A N/A N/A

14

519-3100 Collar Plate Yes 1 Day(s) $4.76

16

550-1030 Basket Assembly Flo-Pro II Yes 1 Day(s) $10.09

17

519-3150 Vacuum Plate with 90° Yes 1 Day(s) $9.21

18

519-3030 Lid - White Yes 1 Day(s) $4.84

19

417-6060 Hose Fitting - 1 1/2"" NPT x 1 1/4"" Hose Barb Yes 1 Day(s) $1.63

20

819-0006 Screw- No. 12 x 1 1/4"" PFH Yes 1 Day(s) $0.44

21

519-4110 Mounting Plate - Wide Mouth - White No N/A N/A N/A

22

711-0070 Wall Protection Gasket - Wide Mouth Yes 1 Day(s) $8.13

23

519-4100 Body - Wide Mouth Yes 1 Day(s) $33.41
