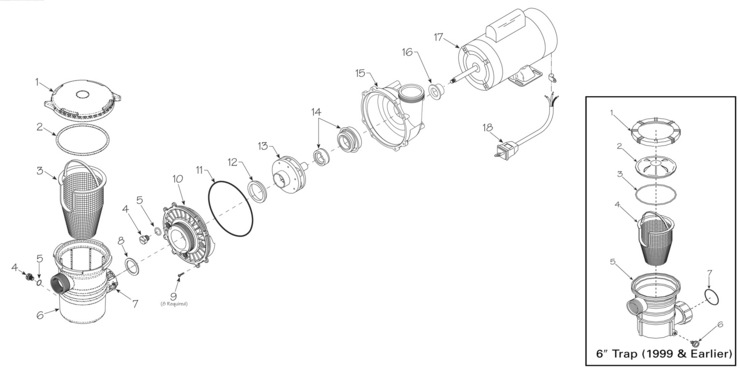

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterway

Model Name: Hi-Flo Side Discharge Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	319-3260	Lid - 6"" Trap - Easy Lock	No	N/A	N/A	N/A
2	805-0436	O-Ring - 6"" Trap	Yes	1 Day(s)	$2.38
3	319-3230	6"" Trap Basket Assembly	Yes	1 Day(s)	$12.09
3	805-0436	6"" Trap Lid O-Ring	Yes	1 Day(s)	$2.38
4	319-3230	6"" Trap Basket Assembly	Yes	1 Day(s)	$12.09
4	715-1201	3/8"" Quarter Slot Plug	Yes	1 Day(s)	$1.75
5	805-0112	O-Ring Drain Plug	Yes	1 Day(s)	$0.40
6	319-2170	6"" Trap Body- 1 1/2"" FPT/ 1 1/2"" Buttress x 2"" Union Flange	Yes	1 Day(s)	$33.37
6	319-3250	3/8"" Drain Plug w/ O-Ring	No	N/A	N/A	N/A
7	711-4010	2"" Trap Gasket	Yes	1 Day(s)	$0.48
7	400-5421B	2"" Split Nut w/ Screw	Yes	1 Day(s)	$3.01
8	711-4010	2"" Split Nut Gasket	Yes	1 Day(s)	$0.48
9	819-1110	Screw	Yes	1 Day(s)	$0.99
12	319-1390	Wear Ring	Yes	1 Day(s)	$5.27
13	310-3990	Impeller 3/4 H.P.	Yes	1 Day(s)	$18.26
14	319-3100B	Seal Kit	Yes	1 Day(s)	$16.67
15	315-2500	Volute Housing	Yes	1 Day(s)	$30.77
18	813-0032	6 Ft. Electrical Cord - Regular Plug	Yes	1 Day(s)	$24.80
18	813-3000	3 Ft. Electrical Cord - Twist Lock Plug	Yes	1 Day(s)	$27.09
