SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

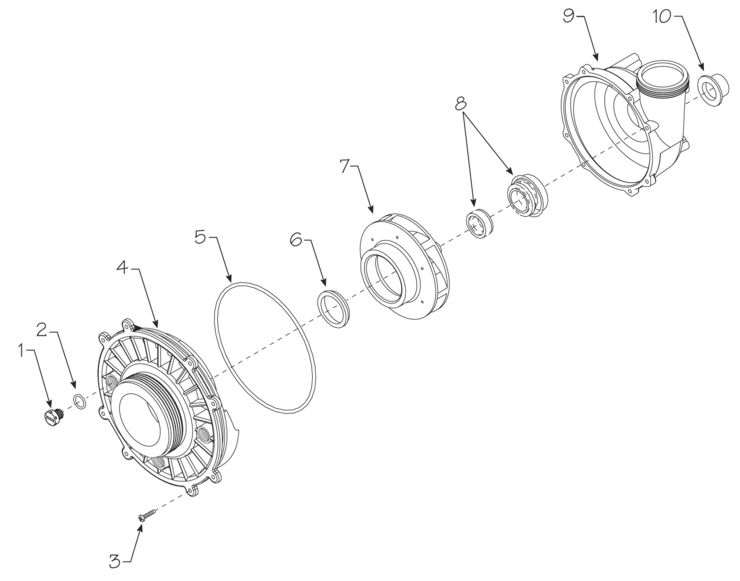

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Waterway
Model Name: Hi-Flo Side Discharge Wet Ends

Waterway HiFlo-Side-Discharge-Wet-Ends replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 715-1201 Drain Plug - Faceplate Yes 1 Day(s) $1.75

2

 805-0111 O-Ring - Drain Plug Yes 1 Day(s) $0.36

3

 819-1110 Screw Yes 1 Day(s) $0.99

6

 313-3220 Sleeve - 1 & 1 1/2 H.P. Impeller Assembly No N/A N/A N/A

8

 319-3100B Pump Seal Set Yes 1 Day(s) $16.67

9

 315-2500 Volute Yes 1 Day(s) $30.77
