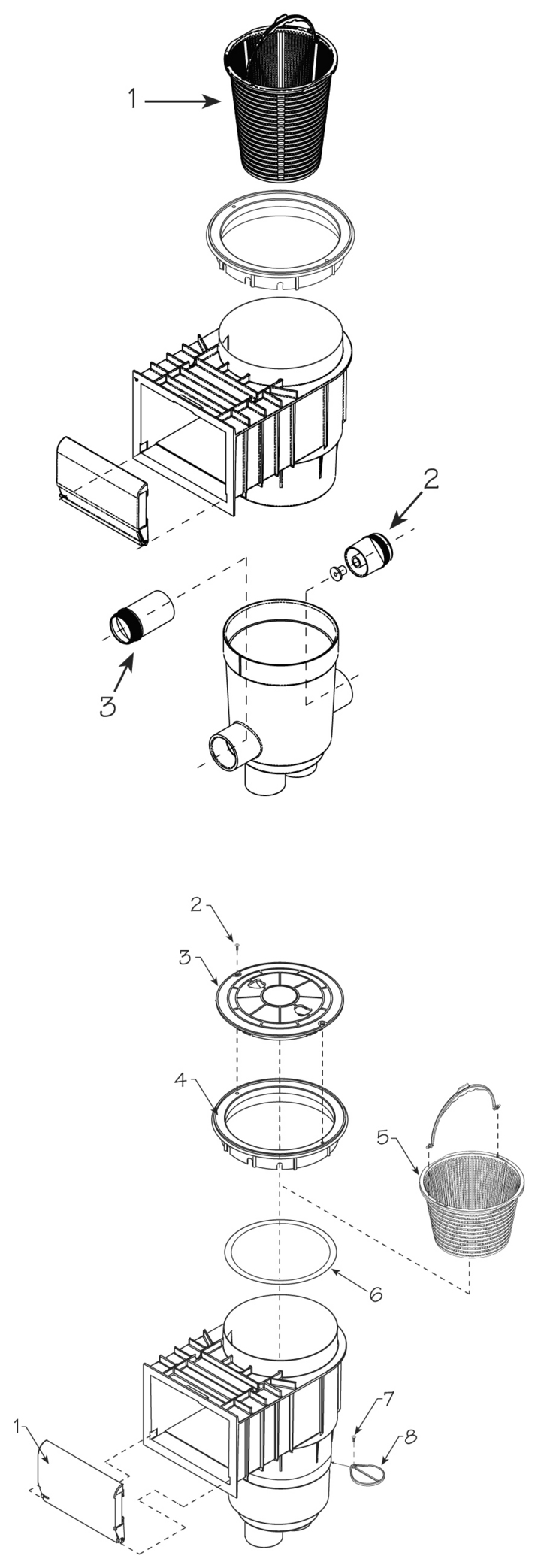

Here is the schematic view you requested:

Category: Skimmers

Manufacturer name: Waterway

Model Name: Renegade Skimmer



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	550-9950	Weir Door Assembly - White	Yes	1 Day(s)	$15.65
1	550-9951	Weir Door Assembly - Black	Yes	1 Day(s)	$15.65
1	550-9957	Weir Door Assembly - Gray	Yes	1 Day(s)	$15.65
1	550-9959DKG	Weir Door Assembly - Dark Gray	Yes	1 Day(s)	$15.65
1	550-9959BEI	Weir Door Assembly - Beige (Tan)	Yes	1 Day(s)	$15.65
1	542-9600	Skimmer Venturi Basket	Yes	1 Day(s)	$16.64
2	542-9610	Venturi Skimmer Nozzle Fitting Assembly	Yes	1 Day(s)	$10.09
2	819-1110	Lid Screw	Yes	1 Day(s)	$0.99
3	519-9650	Outlet Port Venturi Skimmer	Yes	1 Day(s)	$4.74
3	540-6479WWB	Lid - Beige (Tan)	Yes	1 Day(s)	$12.96
3	540-6479WWD	Lid - Dark Gray	Yes	1 Day(s)	$12.96
3	540-6477WW	Lid - Gray	Yes	1 Day(s)	$12.96
3	540-6470WW	Lid - White	Yes	1 Day(s)	$12.34
3	540-6471WW	Lid - Black	Yes	1 Day(s)	$12.96
4	519-6420	Lid Mounting Ring - White	Yes	1 Day(s)	$13.43
4	519-6429DKG	Lid Mounting Ring - Dark Gray	Yes	1 Day(s)	$15.35
4	519-6429BEI	Lid Mounting Ring - Beige (Tan)	Yes	1 Day(s)	$15.35
4	519-6427	Lid Mounting Ring - Gray	Yes	1 Day(s)	$15.35
4	519-6421	Lid Mounting Ring - Black	Yes	1 Day(s)	$15.35
5	542-3240	Basket Assembly	Yes	1 Day(s)	$9.71
6	711-6400	Skimmer Float Valve Gasket	Yes	1 Day(s)	$6.24
7	819-4350	Diverter Screw	Yes	1 Day(s)	$0.30
8	519-6470	Diverter Plate	Yes	1 Day(s)	$3.56
