SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

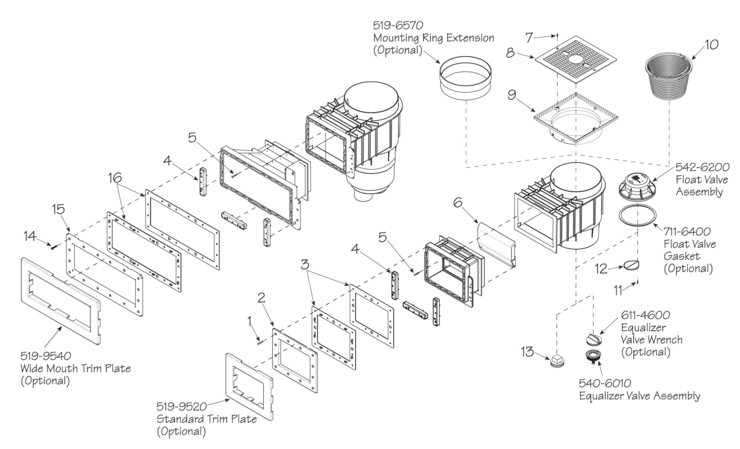

Here is the schematic view you requested:

Category: Skimmers
Manufacturer name: Waterway
Model Name: Renegade Vinyl Liner

Waterway Renegade-Vinyl-Liner replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 519-6480 Vacuum Plate (Not shown) Yes 1 Day(s) $13.75

1

 819-6945 #12 x 1 1/4 PFH"" Screw Yes 1 Day(s) $0.58

2

 519-9530 Mounting Plate - Regular Yes 1 Day(s) $14.35

3

 711-9510 Gasket - Regular Yes 1 Day(s) $10.30

4

 713-9520 Spacer Yes 1 Day(s) $9.11

5

 819-0030 #12 x 1 1/4"" PPH"" Screw Yes 1 Day(s) $0.44

6

 550-9657 Weir Door Assembly Gray Yes 1 Day(s) $15.65

6

 550-9650 Weir Door Assembly White Yes 1 Day(s) $15.65

7

 819-1110 #8 32 x 7/16"" Screw Yes 1 Day(s) $0.99

8

 540-6490WW Square Lid Yes 1 Day(s) $18.47

9

 519-9510 Square Collar Yes 1 Day(s) $14.26

10

 542-3240 Basket Assembly Yes 1 Day(s) $9.71

11

 819-4350 Screw - 8 x 5/8"" Yes 1 Day(s) $0.30

12

 519-6470 Diverter Plate Yes 1 Day(s) $3.56

13

 715-1230 1 1/2"" NPT Plug Yes 1 Day(s) $1.41

14

 819-6945 Screw - #12 x 1 1/4"" - PFH Yes 1 Day(s) $0.58

15

 519-9550 Mounting Plate - Wide Mouth Yes 1 Day(s) $20.70

16

 711-9520 Gasket - Wide Mouth Yes 1 Day(s) $17.60
