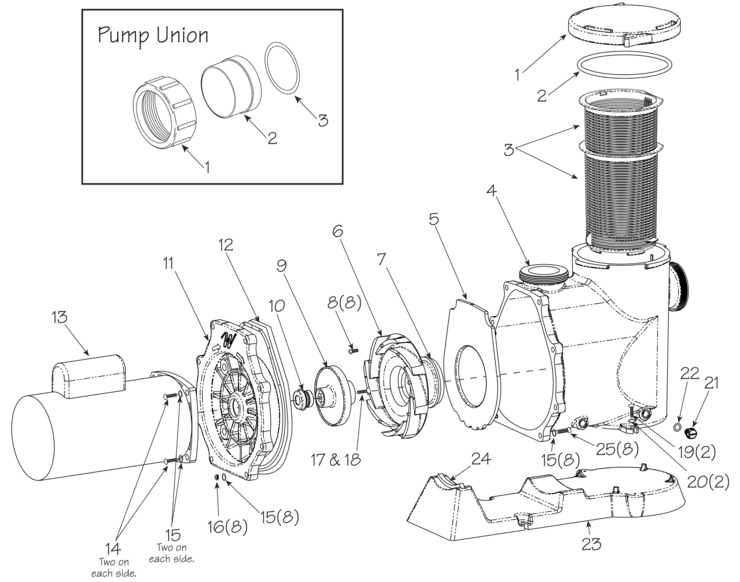

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterway

Model Name: SVL56 Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	400-5971B	2 1/2"" Union x 2"" Socket	Yes	1 Day(s)	$7.97
-	310-7430	SVLHPS-220 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7420	SVLHPS-215 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7410	SVLHPS-110 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7400	SVLHPS-107 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7450	SVLHPE-130 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7440	SVLHPS-225 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7420	SVLHPS-215 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-3670	SVL56S-220 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.92
-	310-3660	SVL56S-215 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-3650	SVL56S-210 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-3670	SVL56S-220 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.92
-	310-3670	SVL56S-220 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.92
-	310-3660	SVL56S-215 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-7440	SVLHPS-225 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7420	SVLHPS-215 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-7430	SVLHPS-220 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	400-6021B	2 1/2"" Union x 2 1/2"" Socket	Yes	1 Day(s)	$7.97
-	417-6001	2 1/2"" Tailpiece	Yes	1 Day(s)	$3.11
-	352-0850	SVL56S-220 Motor	Yes	1 Day(s)	$530.48
-	352-0650	SVL56S-215 Motor	Yes	1 Day(s)	$428.15
-	352-0450	SVL56S-210 Motor	Yes	1 Day(s)	$494.41
-	351-1031	SVL56S-125 Motor	Yes	1 Day(s)	$542.31
-	351-0821	SVL56S-120 Motor	Yes	1 Day(s)	$404.05
-	351-0431	SVL56S-110 Motor	Yes	1 Day(s)	$302.33
-	351-0331	SVL56S-107 Motor	Yes	1 Day(s)	$291.50
-	351-1450	SVL56E-130 Motor	Yes	1 Day(s)	$695.93
-	351-0850	SVL56E-120 Motor	Yes	1 Day(s)	$530.48
-	351-0670	SVL56E-115 Motor	Yes	1 Day(s)	$360.79
-	310-7440	SVLHPS-225 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
-	310-3650	SVL56S-210 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-3650	SVL56S-210 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-3680	SVL56E-130 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.78
-	310-3670	SVL56S-220 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.92
-	310-3660	SVL56S-215 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
-	310-7470	Diffuser - High-Pressure	Yes	1 Day(s)	$52.31
-	351-0631	SVL56S-115 Motor	Yes	1 Day(s)	$353.50
-	310-7430	SVLHPS-220 Impeller Assembly - High-Pressure	Yes	1 Day(s)	$42.91
1	511-1310	Lid	Yes	1 Day(s)	$40.67
2	805-0439	Lid O-Ring	Yes	1 Day(s)	$4.54
2	417-5971	2"" Tailpiece	Yes	1 Day(s)	$2.91
3	319-1310	Basket Assembly	Yes	1 Day(s)	$16.75
3	711-6020	Gasket	Yes	1 Day(s)	$0.40
4	315-1300	Housing	Yes	1 Day(s)	$205.11
5	319-1260	Diffuser Plate - High-Presure (No plate used in the High-Flow)	Yes	1 Day(s)	$36.93
6	310-3300	Diffuser - High-Flow	Yes	1 Day(s)	$52.31
7	805-0238	Diffuser O-Ring	Yes	1 Day(s)	$2.39
8	819-0018	Diffuser Screw	Yes	1 Day(s)	$1.51
9	310-3650	SVL56E-110 Impeller Assembly - High-Flow	Yes	1 Day(s)	$42.91
10	319-3110B	Pump Seal Set - Viton	Yes	1 Day(s)	$15.53
11	311-1400	Faceplate	Yes	1 Day(s)	$66.47
12	711-4290	Faceplate Gasket	Yes	1 Day(s)	$13.84
13	351-0440	SVL56E-110 Motor	Yes	1 Day(s)	$368.52
14	819-0011	Screw -3/8"" - 16 x 1/8""	Yes	1 Day(s)	$3.09
15	820-0017	Flat Washer	Yes	1 Day(s)	$0.55
16	820-0016	Hex Nut	Yes	1 Day(s)	$2.18
17	819-4360	Screw Head Left	Yes	1 Day(s)	$3.09
18	711-4300	SVL Gasket f/Left Hand Screw	Yes	1 Day(s)	$6.13
19	819-0013	Screw	Yes	1 Day(s)	$0.91
20	820-0018	Flat Washer	No	N/A	N/A	N/A
21	715-1201	Drain Plug	Yes	1 Day(s)	$1.75
22	805-0112	Drain Plug O-Ring	Yes	1 Day(s)	$0.40
23	672-1300	SVL56 Base	Yes	1 Day(s)	$38.44
24	672-1310	Motor Support	Yes	1 Day(s)	$8.06
25	819-0016	Bolt - 3/8"" - 16 x 2"" Hex	Yes	1 Day(s)	$1.75
