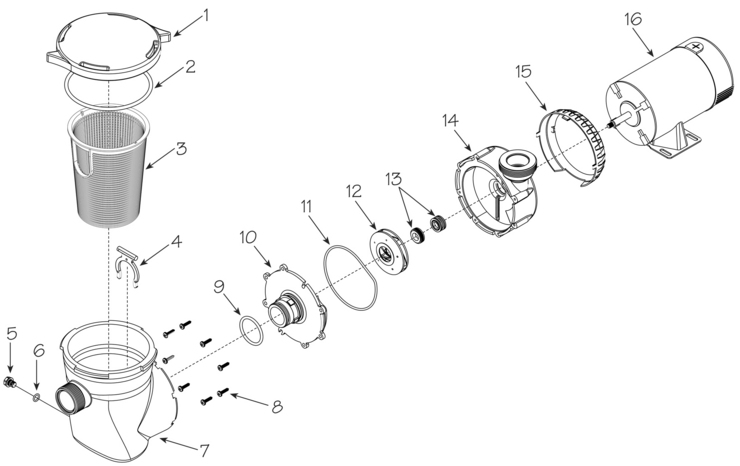

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Waterway

Model Name: Supreme Hi-Flo Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	310-5100	1 1/2 HP Impellar Assembly	Yes	1 Day(s)	$24.65
-	310-5090	1 HP Impellar Assembly	Yes	1 Day(s)	$24.65
1	511-1310	Trap Lid	Yes	1 Day(s)	$40.67
2	805-0439	O-Ring	Yes	1 Day(s)	$4.54
3	319-1530	Trap Basket	Yes	1 Day(s)	$13.43
4	319-1540	C-Clip	Yes	1 Day(s)	$6.63
5	715-1201	3/8"" Quarter Slot Plug	Yes	1 Day(s)	$1.75
6	805-0112	O-Ring Drain Plug	Yes	1 Day(s)	$0.40
7	319-1510	Trap Body	Yes	1 Day(s)	$162.35
8	819-0800	#12 x 1"" Self-Tapping Pan Head Phillips	Yes	1 Day(s)	$0.50
9	805-0330	O-Ring	Yes	1 Day(s)	$0.67
10	311-1520	Volute Cover	Yes	1 Day(s)	$67.80
11	805-0253	O-Ring Face Plate Volute	Yes	1 Day(s)	$10.61
12	310-5080	3/4 HP Impellar Assembly	Yes	1 Day(s)	$24.65
13	319-3100B	Seal Kit	Yes	1 Day(s)	$16.67
14	315-1510	Volute	Yes	1 Day(s)	$101.96
15	319-1550	Cosmetic Ring	Yes	1 Day(s)	$33.13
