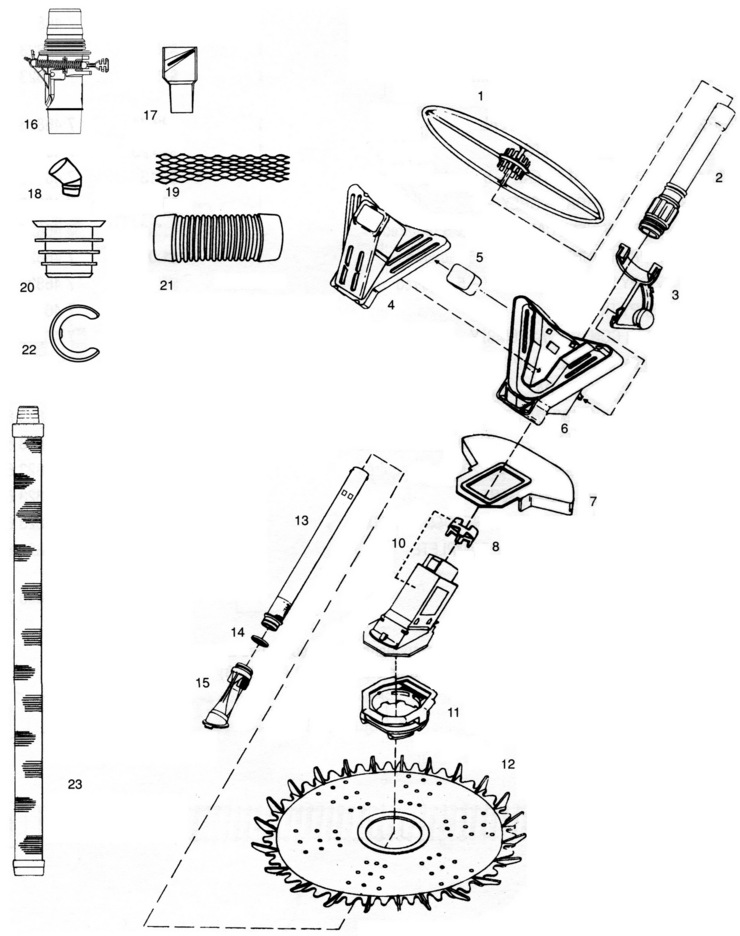

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Zodiac

Model Name: Alpha 2



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	W46055	Alpha 2 Wheel Deflector - 12"" - Turquoise	Yes	1 Day(s)	$20.22
2	W74050	Alpha 2 Outer Extension Pipe w/Handnut	No	N/A	N/A	N/A
3	W90281	Alpha 2 Weighted Spur Bumper - Gray	No	N/A	N/A	N/A
4	W52810	Outer Body Top	No	N/A	N/A	N/A
5	W80520	Alpha 2 Float	No	N/A	N/A	N/A
6	W54198	Alpha 2 Outer Body Bottom	No	N/A	N/A	N/A
7	W49855	Alpha 2 Apron - Turquoise	No	N/A	N/A	N/A
10	W61225	Alpha 2 Inner Body + Compression Ring	Yes	1 Day(s)	$45.41
11	W72880	Foot Pad - Teal	No	N/A	N/A	N/A
12	W49655	Finned Disc - Turquoise	Yes	1 Day(s)	$84.75
15	W81701	Inground AIB Diaphragm	Yes	1 Day(s)	$37.78
17	W44800	Pool Pulse	Yes	1 Day(s)	$22.50
19	W33800	Hose Protector	Yes	1 Day(s)	$3.75
20	W63900	Inground Valve Cuff	No	N/A	N/A	N/A
21	W33160	4 1/2"" Connector - Aqua	Yes	1 Day(s)	$9.18
22	W83247	Hose Weight - 2 req.	Yes	1 Day(s)	$19.83
23	W20460	Hose Kit - 12 x 1 Meter - Aqua	Yes	1 Day(s)	$196.09
