SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

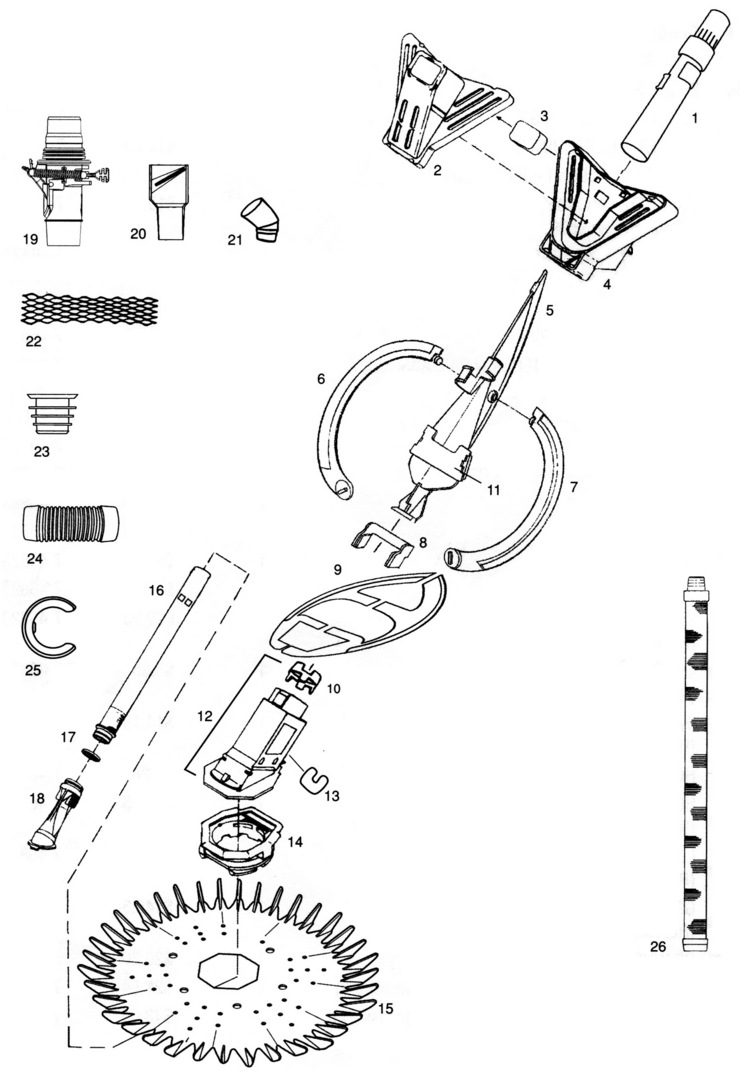

Here is the schematic view you requested:
Manufacturer name: Zodiac
Model Name: Alpha 3

Zodiac Alpha-3 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 W59035 Alpha 3 Side Wing A & B No N/A N/A N/A

-

 W70640 Alpha 3 Bumper Kit (Incl. #s 1, 5, 6, 7, 9, 13, 16) No N/A N/A N/A

1

 W75050 Alpha 3 Outer Ext. Pipe No N/A N/A N/A

2

 W52810 Alpha 3 Outer Body Top - Metallic Blue No N/A N/A N/A

3

 W80525 Alpha 3 Float No N/A N/A N/A

4

 W54198 Alpha 3 Outer Body Bottom - Metallic Blue No N/A N/A N/A

5

 W70450 Alpha 3 Bumper Fin Complete No N/A N/A N/A

6

 W48632 Alpha 3 Side Wing A (a) No N/A N/A N/A

7

 W48633 Alpha 3 Side Wing B (a) No N/A N/A N/A

8

 W70600 Alpha 3 Outer Body Bracket No N/A N/A N/A

9

 W48635 Alpha 3 Bottom Bumper No N/A N/A N/A

11

 W40950 Alpha 3 Weight Housing Assy. No N/A N/A N/A

12

 W61225 Alpha 3 Inner Body & Compression Ring Yes 1 Day(s) $45.41

13

 W48636 Alpha 3 Belly Weight No N/A N/A N/A

14

 W72880 Foot Pad - Teal No N/A N/A N/A

15

 W46666 Finned Disc - Teal No N/A N/A N/A

18

 W81701 Inground AIB Diaphragm Yes 1 Day(s) $37.78

20

 W44800 Pool Pulse Yes 1 Day(s) $22.50

22

 W33800 Hose Protector Yes 1 Day(s) $3.75

23

 W63900 Inground Valve Cuff No N/A N/A N/A

24

 W33160 Alpha 3 4 1/2"" Connector - Aqua Yes 1 Day(s) $9.18

25

 W83247 Hose Weight Yes 1 Day(s) $19.83

26

 W20460 Alpha 3 Hose Kit - 12x1 Meter - Aqua Yes 1 Day(s) $196.09
