SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

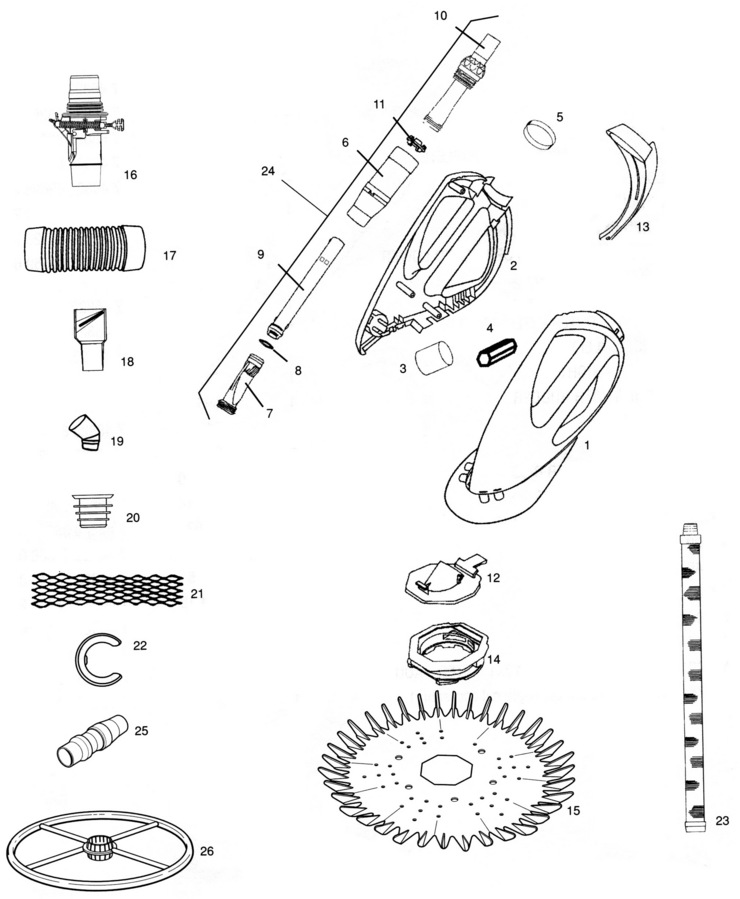

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Zodiac
Model Name: Baracuda G3

Zodiac Baracuda-G3 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 W69541 Left G3 Body Yes 1 Day(s) $37.68

2

 W69542 Right G3 Main Body Yes 1 Day(s) $29.26

3

 W56124 Float - Baracuda G3 Yes 1 Day(s) $4.90

4

 W41079 Weight - Baracuda G3 Yes 1 Day(s) $13.58

5

 W69545 Retaining Collar - Baracuda G3 Yes 1 Day(s) $13.55

6

 W69559 Cassette Chambers Upper and Lower No N/A N/A N/A

10

 W69540 Cassette Outer Extension Pipe Assy. w/Handnut No N/A N/A N/A

12

 W69732 Foot Flange No N/A N/A N/A

13

 W69526 Bumper Fin - Baracuda G3 Yes 1 Day(s) $36.55

14

 W72880 Foot Pad - Teal No N/A N/A N/A

15

 W46666 Finned Disc - Teal No N/A N/A N/A

17

 W33160 4 1/2"" Connector - Aqua Yes 1 Day(s) $9.18

18

 W44800 Pool Pulse Yes 1 Day(s) $22.50

20

 W63900 Inground Valve Cuff No N/A N/A N/A

21

 W33800 Hose Protector Yes 1 Day(s) $3.75

22

 W83247 Hose Weight Yes 1 Day(s) $19.83

23

 W83140 Long-Life Hose Kit - 12x1 Meter - Aqua Yes 1 Day(s) $227.09

24

 W69994 G3 Cassette Assembly Complete No N/A $137.57

25

 W41721 G3 Wheel Adapter No N/A N/A N/A

26

 W33411 G3 12"" Wheel Deflector Yes 1 Day(s) $21.44

27

 W70500 G3 Wheel Deflector Kit Yes 1 Day(s) $47.18
