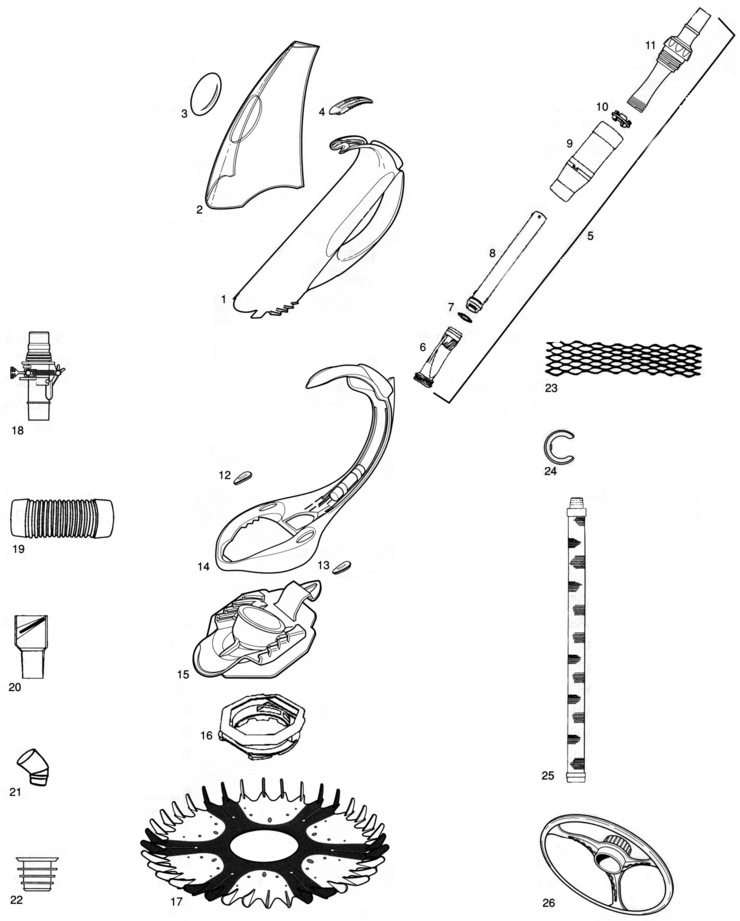

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Zodiac

Model Name: G4



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	W83262	Hull	Yes	1 Day(s)	$66.93
2	W83261	Sail	Yes	1 Day(s)	$74.35
3	W83268	Buoy	Yes	1 Day(s)	$4.90
4	W83264	Cleat	Yes	1 Day(s)	$4.43
5	W83325	G4 Cassette Assembly Complete	Yes	1 Day(s)	$161.33
9	W69559	Cassette Chambers Upper and Lower	No	N/A	N/A	N/A
11	W83271	Cassette Outer Extension Pipe	Yes	1 Day(s)	$134.10
12	W83265	Fender - Left	Yes	1 Day(s)	$8.80
13	W83266	Fender - Right	Yes	1 Day(s)	$8.80
14	W83360	Fairing w/Rudder	Yes	1 Day(s)	$109.71
15	W83263	Foot Flange	Yes	1 Day(s)	$15.84
16	W83275	Foot Pad	Yes	1 Day(s)	$45.83
17	W83277	Dual Durometer Disc	Yes	1 Day(s)	$91.42
19	W33160	4 1/2"" Connector - Aqua	Yes	1 Day(s)	$9.18
20	W44800	Pool Pulse	Yes	1 Day(s)	$22.50
22	W63900	Inground Valve Cuff	No	N/A	N/A	N/A
23	W33800	Hose Protector	Yes	1 Day(s)	$3.75
24	W83247	Hose Weight	Yes	1 Day(s)	$19.83
25	W83140	Long-Life Hose Kit - 12x1 Meter - Aqua	Yes	1 Day(s)	$227.09
26	W83278	Wheel Deflector	Yes	1 Day(s)	$25.11
