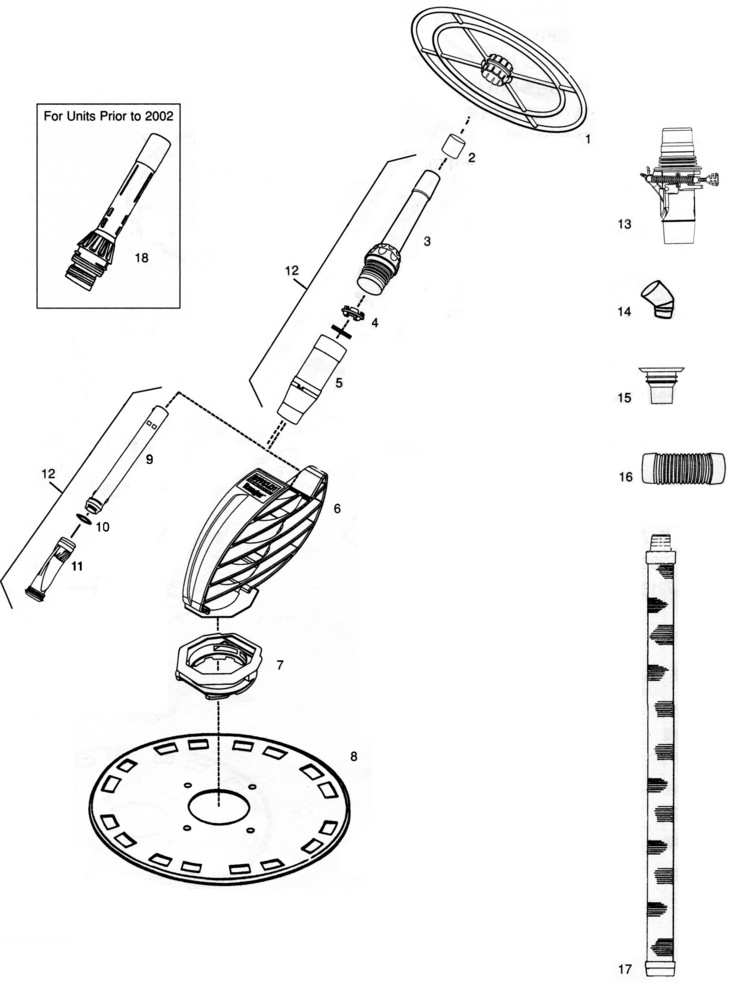

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Zodiac

Model Name: Ranger



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	W46155	Ranger Wheel Deflector 16"" - Turquoise	Yes	1 Day(s)	$26.85
2	W69742	Wheel Adapter	Yes	1 Day(s)	$10.45
3	W69729	Ranger Threaded Cassette Pipe w/Handnut	Yes	1 Day(s)	$54.39
5	W81741	Ranger Diaphragm Chamber - Turquoise	Yes	1 Day(s)	$16.20
6	W69730	Ranger Frame - Turquoise	Yes	1 Day(s)	$121.41
7	W72855	Ranger Foot Pad - Turquoise	Yes	1 Day(s)	$45.83
8	W48131	Ranger Slotted Disc - Purple	Yes	1 Day(s)	$83.76
11	W81710	Aboveground Cassette Diaphragm	Yes	1 Day(s)	$37.78
12	W69728	Ranger Cassette Assembly	Yes	1 Day(s)	$124.02
18	W72052	Ranger Cassette Pipe w/ Handnut	No	N/A	N/A	N/A
