SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

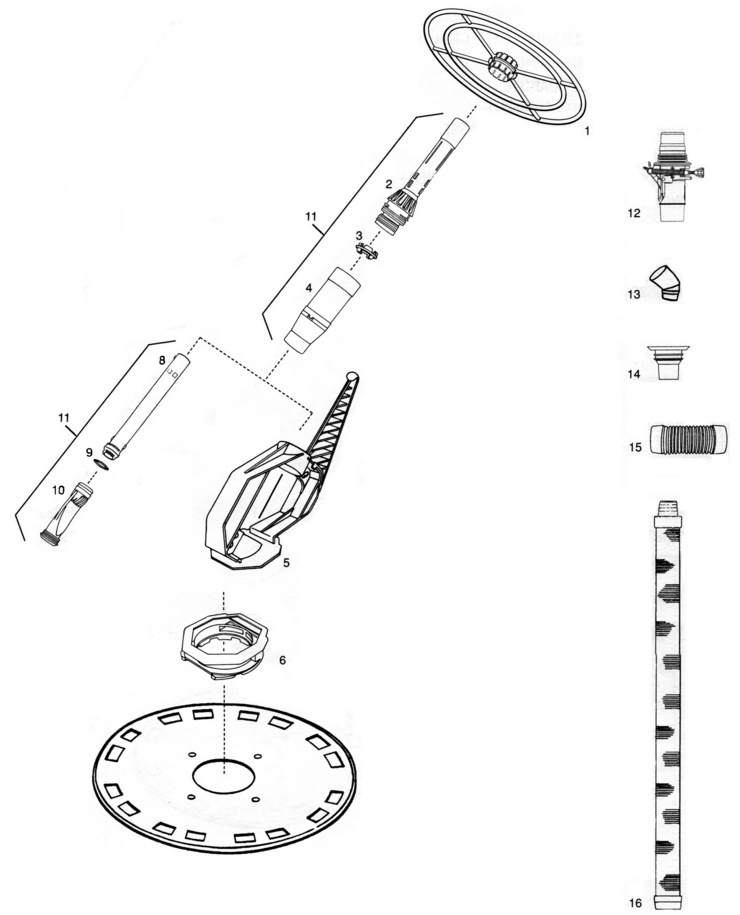

Here is the schematic view you requested:

Category: Automatic Cleaners
Manufacturer name: Zodiac
Model Name: Zodiac 1500

Zodiac Zodiac-1500 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 W83226 Wheel Deflector 16"" - Light Gray No N/A N/A N/A

2

 W72070 Cassette Pipe w/Handnut - Purple No N/A N/A N/A

4

 W69510 Diaphragm Chamber No N/A N/A N/A

5

 W40935 Frame with Bumper Fin No N/A N/A N/A

6

 W72865 Foot Pad - Dark Blue No N/A $39.08

7

 W48139 Slotted Disc - Blue No N/A N/A N/A

10

 W81710 Aboveground Cassette Diaphragm Yes 1 Day(s) $37.78

11

 W72048 Cassette Assembly - Purple No N/A N/A N/A
