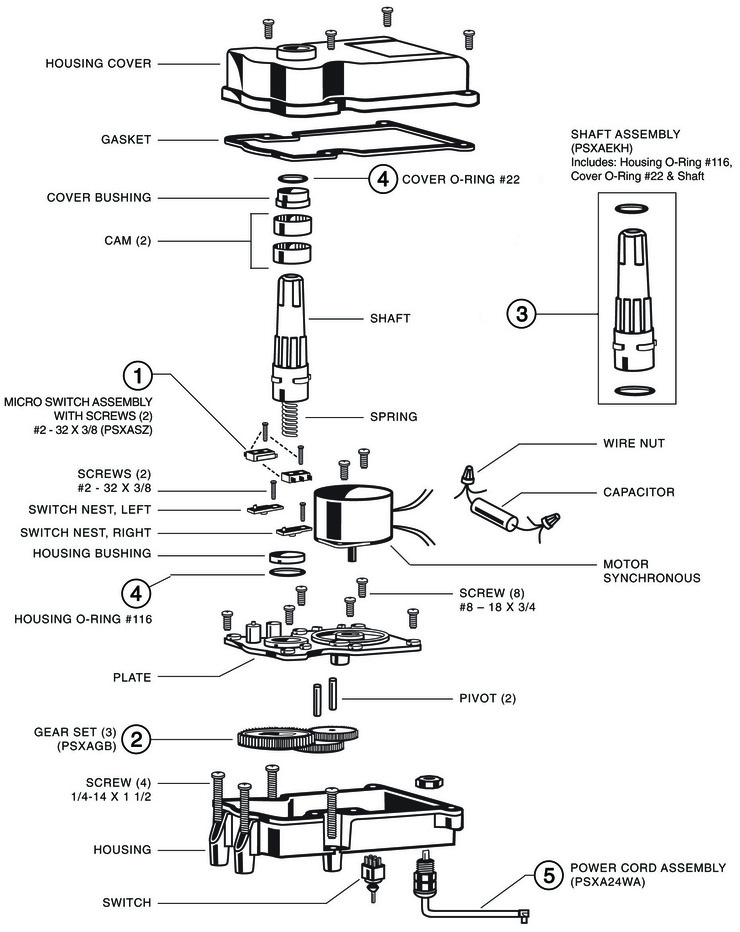

Here is the schematic view you requested:

Category: Electronic Controls
Manufacturer name: Hayward
Model Name: Actuator

Hayward Actuator replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 PSXASZ Micro Switch Assembly No N/A N/A N/A

2

 PSXAGB Gear Set (3 Gears) No N/A N/A N/A

3

 PSXAEKH Shaft Assembly No N/A N/A N/A

4

 PSXAORINGKIT O-Ring Kit (Cover O-Ring #22, Housing O-Ring #116) Yes 1 Day(s) $2.24
