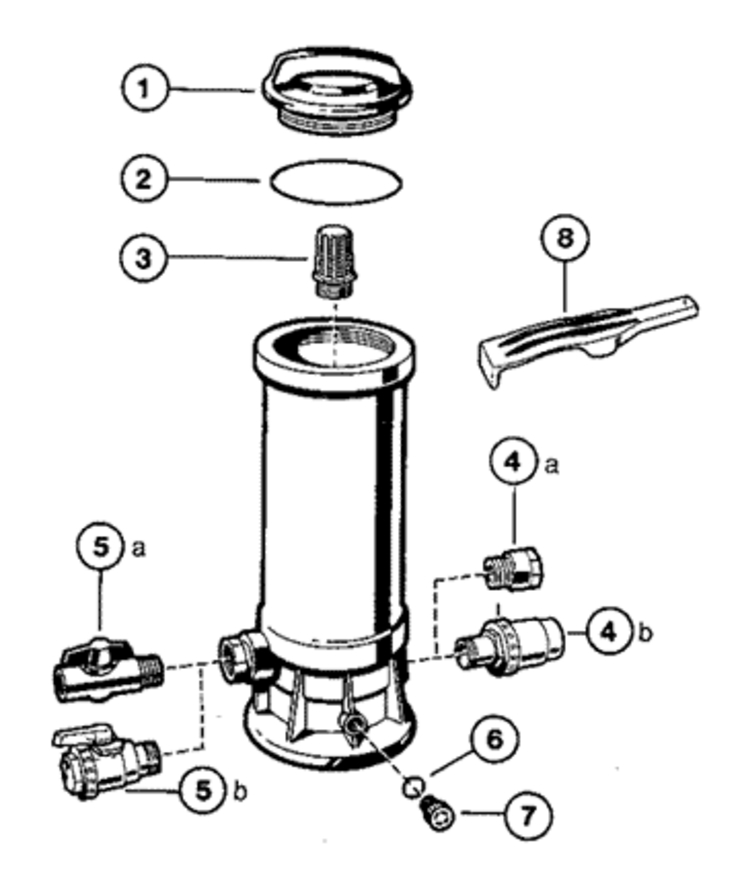

Here is the schematic view you requested:

Category: Chemical Feeders

Manufacturer name: Hayward

Model Name: Chemical Feeder: Series C250CF, 500CF, 1100CF, 1800CF



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX3100D	Cover	Yes	1 Day(s)	$51.68
	SPX3100D	Cover	Yes	1 Day(s)	$51.68
	CX1100P	Handle for Control Valve	Yes	1 Day(s)	$11.32
	CX1100CV	1 1/2" Check Valve	Yes	1 Day(s)	$60.55
	CX1100BV	1 1/2" Control Valve w/Dial Indicator	Yes	1 Day(s)	$61.59
	CX500P	Handle for Control Valve	Yes	1 Day(s)	$6.55
	CX500CV	3/4" Check Valve (C250BR, 500BR)	Yes	1 Day(s)	$39.92
	CX500BV	3/4" Control Valve w/Dial Indicator (C250BR,500BR)	Yes	1 Day(s)	$49.19
	SPX605Z2V	Drain Plug O-Ring, Special Composition Viton	No	N/A	N/A	N/A
	CX250Z14	1/2" Drain Plug	No	N/A	N/A	N/A
	CX500J	Strainer	Yes	1 Day(s)	$14.19
	SPX3000SV	Cover O-Ring, Special Composition Viton	Yes	1 Day(s)	$42.06
	SP3100T	Cover Removal Tool	Yes	1 Day(s)	$19.78
	SPX3100D	Cover	Yes	1 Day(s)	$51.68
