SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

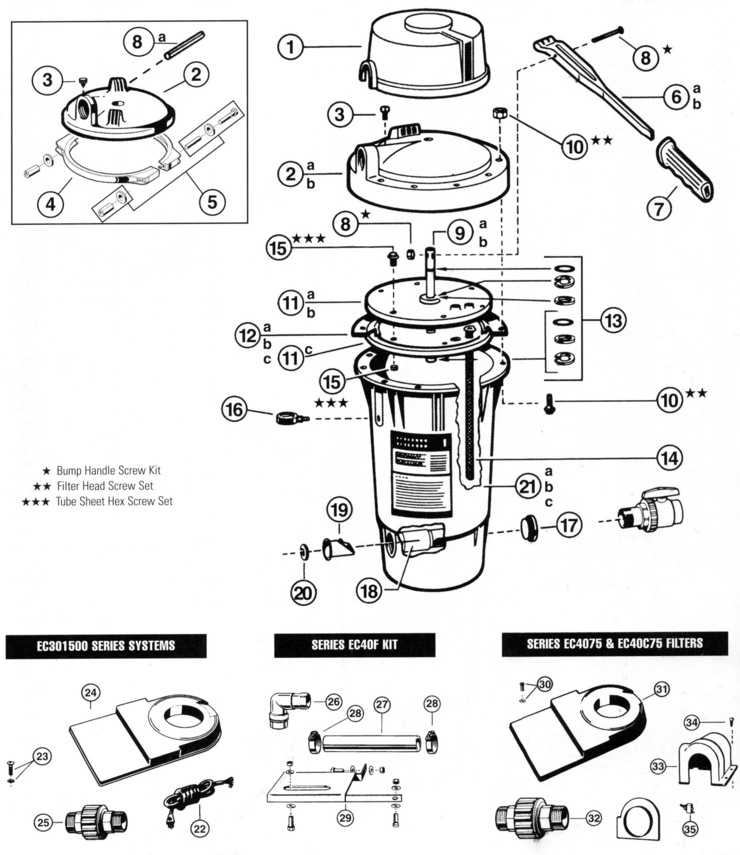

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Hayward

Model Name: EC30, EC40 & EC40AC Series Extended-Cycle D.E. Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	ECX4035	Flex Tube Nest (incls. 9, 11 -15) - EC40AC	Yes	1 Day(s)	$308.57
-	SPX1500WA	6 Ft. Cord Set - No. 16/3 AWG	Yes	1 Day(s)	$19.43
-	ECX1035	Flex Tube Nest (incls. 9, 11 -15) - EC40	Yes	1 Day(s)	$443.52
-	ECX1133	Flex Tube Nest (incls. 9, 11-15) - EC30	Yes	1 Day(s)	$397.48
1	ECX10066	Bump Mechanism Cover	Yes	1 Day(s)	$41.13
2a	ECX1131P	Filter Head w/Vent Valve - EC30	Yes	1 Day(s)	$140.42
2b	ECX10334P	Filter Head w/Vent Valve - EC40	Yes	1 Day(s)	$142.99
2c	ECX5000BP	Filter Head w/Vent Valve - EC40AC	Yes	1 Day(s)	$97.76
4	ECX4000C	Clamp Assembly w/Hardware	Yes	1 Day(s)	$60.12
5	ECX4000CHK	Hardware Kit for Clamp Assembly (2 Bolts, 1 Nut, 1 Spacer, 2 Washers)	Yes	1 Day(s)	$19.69
6a	ECX1037A	Bump Handle Assembly - Noryl® - EC30	Yes	1 Day(s)	$31.14
6b	ECX1040	Bump Handle Assembly - Noryl® - EC40/EC40AC	Yes	1 Day(s)	$33.46
7	ECX1037B	Bump Handle Grip - Noryl®	Yes	1 Day(s)	$10.44
8a	ECX100Z9	Pivot Pin (Long) - EC40AC only	Yes	1 Day(s)	$4.91
9a	ECX1009	Bump Shaft, 1/2"" - EC30/EC40	Yes	1 Day(s)	$42.08
9b	ECX5000F	Bump Shaft - EC40AC	Yes	1 Day(s)	$44.86
10	ECX10271A	Filter Head Screw Set - EC30/EC40	Yes	1 Day(s)	$3.72
11b	ECX1004A	Tube Sheet (Top ) - EC40/EC40AC	Yes	1 Day(s)	$21.11
11c	ECS1004	Tube Sheet (Bottom) - EC40/EC40AC	No	N/A	N/A	N/A
11a	ECX1038	Tube Sheet (Bottom) - EC30 (top) - ECX1038A	Yes	1 Day(s)	$33.32
12a	ECX1039	Diaphragm Gasket - EC30	Yes	1 Day(s)	$54.71
12b	ECX1003	Diaphragm Gasket - EC40	Yes	1 Day(s)	$57.48
12c	ECX5000G	Diaphragm Gasket - EC40AC	Yes	1 Day(s)	$56.57
13	ECX1014A	Bump Shaft Kit	Yes	1 Day(s)	$7.99
14	ECX1031	Flex-Tube Assembly (54 For EC30, 72 For EC40/EC40AC)	Yes	1 Day(s)	$6.48
15	SPX1500NYA	Tube Sheet Hex Screw Set - EC30/EC40	Yes	1 Day(s)	$2.12
18	ECX1256	Flow Diffuser w/Check Valve	Yes	1 Day(s)	$38.61
20	ECX1055	Flow Controller	Yes	1 Day(s)	$6.00
21c	ECX4034	Filter Body w/Flow Diffuser - EC40AC	Yes	1 Day(s)	$189.47
21b	ECX10344P	Filter Body w/Flow Diffuser - EC40	Yes	1 Day(s)	$272.29
21a	ECX1132P	Filter Body w/Flow Diffuser - EC30	Yes	1 Day(s)	$181.50
22	SPX1500WA	6 ft. Cord Set - No. 16/3 AWG	Yes	1 Day(s)	$19.43
26	SPX1105Z4	1 1/2"" Elbow Hose Adapter	Yes	1 Day(s)	$5.87
27	ECX27071	1 9/16"" I.D. Clear Hose	Yes	1 Day(s)	$20.81
28	ECX18028	Hose Clamp	Yes	1 Day(s)	$3.60
29	ECX10992	Pump Mounting Base	No	N/A	N/A	N/A
33	ECX1121	Rainshield Cover Assembly	Yes	1 Day(s)	$91.20
34	SPX1411Z3	Pan Head Hilo Screw	Yes	1 Day(s)	$2.32
