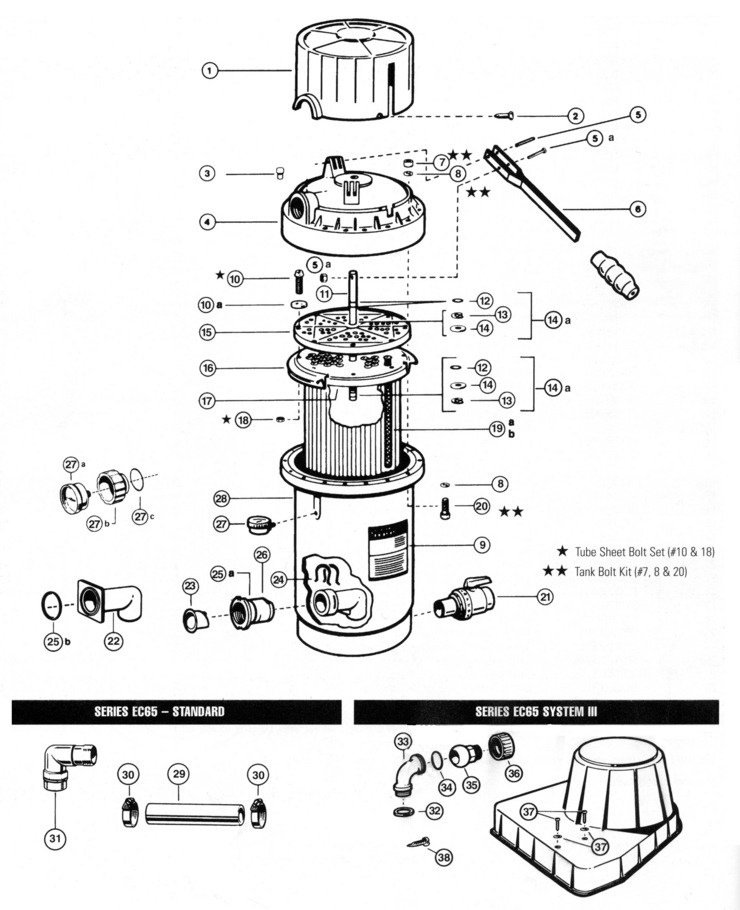

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Hayward

Model Name: EC65, EC65A, EC75, EC75A Extended-Cycle D.E. Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	ECX125175	Flex-Tube Nest (EC75) - includes Items 11 thru 20	Yes	1 Day(s)	$1012.41
-	ECX1037B	Bump Handle Grip - Noryl	Yes	1 Day(s)	$10.44
-	SPX1500NYA	Tube Sheet Bolt Set (includes 11 & 19)	Yes	1 Day(s)	$2.12
-	ECX1642A	Tank Bolt Kit (EC65, 75 - includes 8, 9 & 21)	Yes	1 Day(s)	$3.35
-	ECX1251	Flex-Tube Nest (EC65) - includes Items 11 thru 20	Yes	1 Day(s)	$762.23
1	ECX11206	Bump Mechanism Cover	Yes	1 Day(s)	$53.30
2	ECX1019	Cover Screw	Yes	1 Day(s)	$2.45
4	ECX11194AT	Filter Head w/New Vent Valve	Yes	1 Day(s)	$210.62
5a	ECX4236A	Bump Screw Kit	Yes	1 Day(s)	$2.76
5	ECX100Z9	Roll Pin	Yes	1 Day(s)	$4.91
6	ECX1040	Bump Handle Ass'y. (Noryl®) - incls. Pin, Shoulder Screw, Nut	Yes	1 Day(s)	$33.46
7	ECX1642A	Tank Bolt Set	Yes	1 Day(s)	$3.35
8	ECX1077	1/4"" x 1 1/16"" O.D. Flat Washer	Yes	1 Day(s)	$1.28
9	ECX1230	Decal - Operation	Yes	1 Day(s)	$6.78
10a	ECX1641125	No. 10 Flat Washer	Yes	1 Day(s)	$0.70
10	SPX1500N1	Tube Sheet Screw	Yes	1 Day(s)	$2.82
11	ECX1110	Bump Shaft	Yes	1 Day(s)	$48.49
12	ECX9611246	O-Ring	Yes	1 Day(s)	$1.53
13	ECX1014	Retainer	Yes	1 Day(s)	$4.03
14	ECX1011	Thrust Washer	Yes	1 Day(s)	$3.73
14a	ECX1014A	Shaft Kit (includes 13, 14 & 15)	Yes	1 Day(s)	$7.99
15	ECX1104	Tube Sheet (Top)	Yes	1 Day(s)	$40.37
16	ECX1105	Diaphragm Gasket	Yes	1 Day(s)	$75.73
17	ECX1103	Tube Sheet (Bottom)	Yes	1 Day(s)	$40.37
18	SPX1500Y1	Tube Sheet Nut	Yes	1 Day(s)	$1.28
19a	ECX1031	Flex-Tube Assembly - 13 W Long (EC65)	Yes	1 Day(s)	$6.48
19b	ECX1032	Flex-Tube Assembly - 16 1/4"" Long (EC75)	Yes	1 Day(s)	$6.57
20	ECX1642215	1/4""-20 x 1 3/4"" Hex. Head Bolt	Yes	1 Day(s)	$3.60
22	ECX4220A	Elbow Assembly w/Check	Yes	1 Day(s)	$44.86
24	ECX4212A	Retainer (1989-prior)	Yes	1 Day(s)	$9.75
26	ECX4201CA	Inlet Fitting w/ECX4077B1 Check Valve (1989-prior)	Yes	1 Day(s)	$44.80
27b	ECX12866	Gauge/Port Adapter	Yes	1 Day(s)	$20.39
27c	ECX1287	Adapter O-Ring	Yes	1 Day(s)	$5.02
28	ECX11184AT	Filter Body w/new Elbow Assembly	Yes	1 Day(s)	$375.03
29	ECX27071	1-9/16"" I.D. Clear Hose	Yes	1 Day(s)	$20.81
30	ECX18028	Hose Clamp	Yes	1 Day(s)	$3.60
31	SPX1105Z4	1 1/2"" Elbow Hose Adapter	Yes	1 Day(s)	$5.87
33	SPX1485B	Pump Discharge Elbow	Yes	1 Day(s)	$25.58
35	SPX1485A	Union Ball End	Yes	1 Day(s)	$21.12
36	SPX1480C	Union Nut	Yes	1 Day(s)	$8.84
38	SPX1600Z52	Anchor Screw (Pkg. of 2)	Yes	1 Day(s)	$2.87
