SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

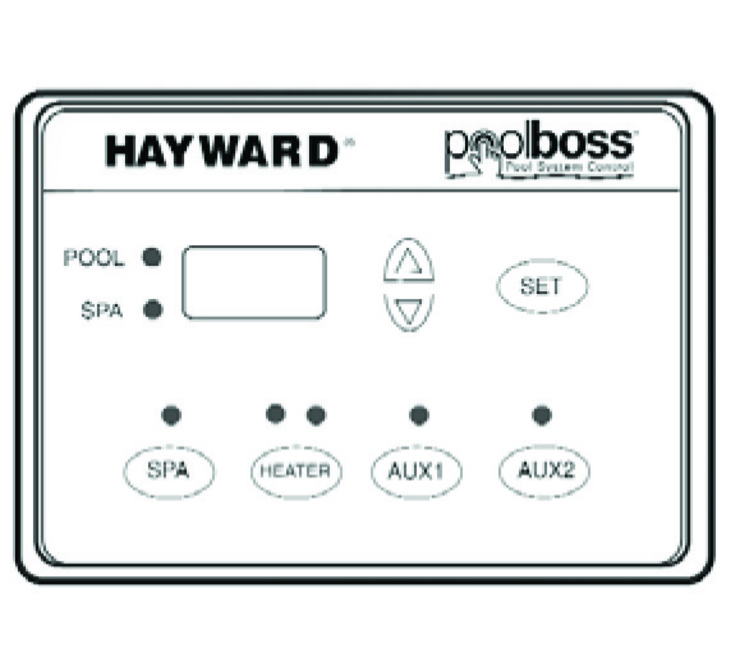

Here is the schematic view you requested:

Category: Electronic Controls
Manufacturer name: Hayward
Model Name: Pool Boss - Pool/Spa Controls

Hayward Pool-Boss-PoolSpa-Controls replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

PSC2201 Pool Boss w/o breaker No N/A $1030.86

PSC2221 Freeze Protection Kit No N/A $95.23

PSC2222 Water Temp Kit Yes 1 Day(s) $68.97

PSC2223 Master Panel Yes 1 Day(s) $362.53

PSC2223B Master Panel for PSC2201B/PSC2202B No N/A N/A N/A

PSC2224 Circuit Board No N/A N/A N/A

PSC2224B Circuit Board for PSC2201/PSC2202B No N/A N/A N/A

PSC2225 Transformer No N/A N/A N/A

PSC2225B Transformer for PSC2201B/PSC2202B No N/A N/A N/A

PSC2226 Circuit Breaker Base No N/A N/A N/A

PSC2217 Spa Panel w/150' Cord No N/A N/A N/A

PSC2216 Spa Panel w/100' Cord No N/A N/A N/A

PSC2215 Spa Panel w/50' Cord No N/A $229.95

PSC2201B Pool Boss w/o breaker No N/A N/A N/A

PSC2202 Pool Boss w/breaker No N/A N/A N/A

PSC2202B Pool Boss w/breaker No N/A N/A N/A

PSC2205 PSC2201 w/o actuator No N/A N/A N/A

PSC2207 PSC2202 w/o actuator No N/A N/A N/A

PSC2211 3 HP Relay No N/A N/A N/A

PSC2212 2-Speed Pump Kit No N/A N/A N/A

PSC2213 Time Clock Yes 1 Day(s) N/A N/A

PSC2214 Fiber Optics Kit No N/A N/A N/A

PSC2227 Ground Bar No N/A N/A N/A
