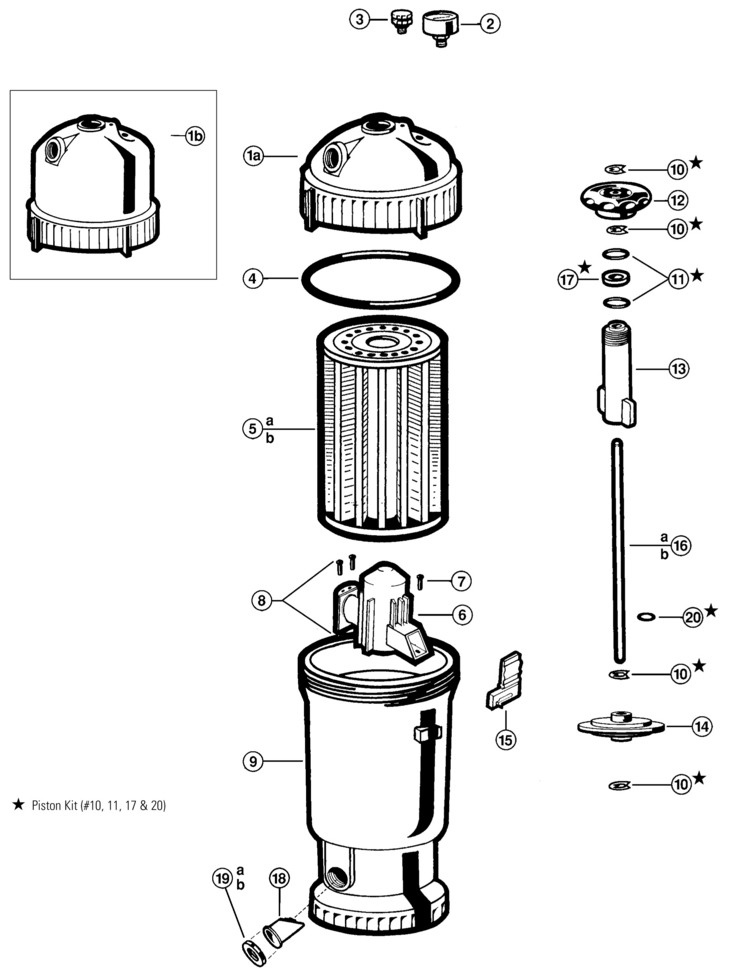

Here is the schematic view you requested:

Manufacturer name: Hayward

Model Name: ReGenX



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	RGX45RA	Piston Kit (#10, 11, 17 & 20)	Yes	1 Day(s)	$30.09
1b	RGX70BC	Filter Head w/Locking Ring (RG700, SC700)	Yes	1 Day(s)	$203.89
1a	RGX45BC	Filter Head w/Locking Ring (RG450)	Yes	1 Day(s)	$186.18
5b	RGX70GE	Grid Element (RG700, SC700)	Yes	1 Day(s)	$285.44
5a	RGX55GE	Grid Element (RG450)	Yes	1 Day(s)	$264.15
10	RGX45R1	Retainer Ring	Yes	1 Day(s)	$3.40
12	RGX45K	Piston Knob	Yes	1 Day(s)	$31.80
13	RGX45J	Seal Locator	Yes	1 Day(s)	$20.23
14	RGX55PA	Piston Mechanism	Yes	1 Day(s)	$53.45
16b	RGX70R	Piston Rod (RG700)	Yes	1 Day(s)	$89.28
16a	RGX45R	Piston Rod (RG450)	Yes	1 Day(s)	$76.79
17	RGX45F	Polyethylene Washer	Yes	1 Day(s)	$2.92
19a	ECX1055	Flow Controller (RG450, RG550)	Yes	1 Day(s)	$6.00
19b	ECX1056	Flow Controller (RG700, SC700)	Yes	1 Day(s)	$6.73
20	SPX3000Z26	Washer (set of 6)	Yes	1 Day(s)	$4.61
